How to add my “LOGO” in the printed receipt?

1. Use the USB cable to install the printer to the Windows computer. Please refer to this chapter for the installation method:

• How to Install a Windows Printer Using a USB Cable?

2. Set the logo:

1)Open the Printer Test V5.2C tool：http://u.pc.cd/0AsrtalK

2)Connect printer with Windows computer via USB cable.

3)Set up as below.

①Add your “LOGO” in the printer.

You can change the size of the logo icon by entering a value in Contrast and Width.

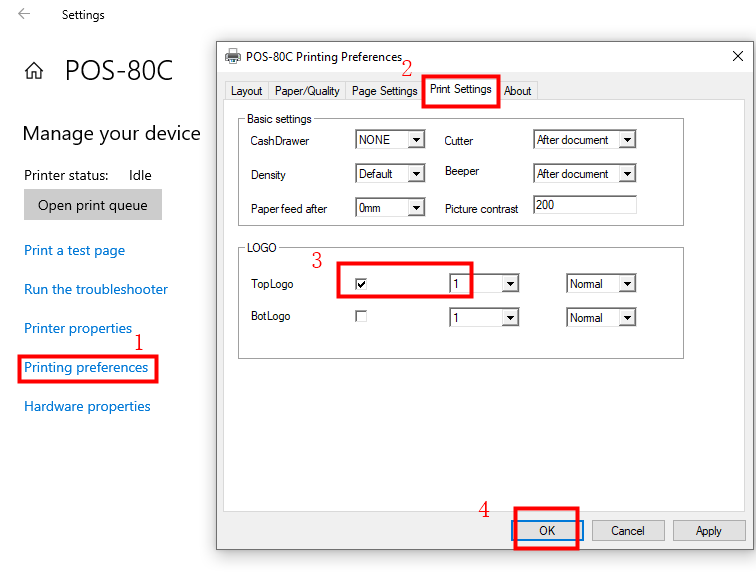

②Set up the “LOGO” in Printing Preferences Page---Print Settings---LOGO

Top Logo: The logo will appear at the top of the receipt, and the number 1 behind it indicates that the PIC1 logo set in the tool is selected.

Notice：If you want to add a QR code at the top or bottom of the receipt, you can convert the QR code to .bmp format and add it.

Steps:

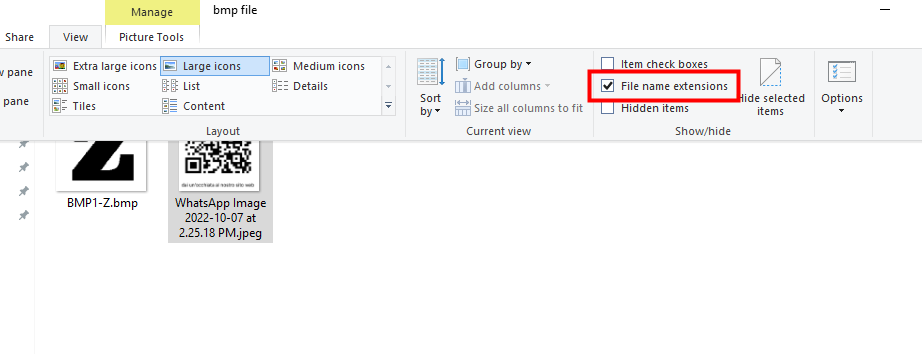

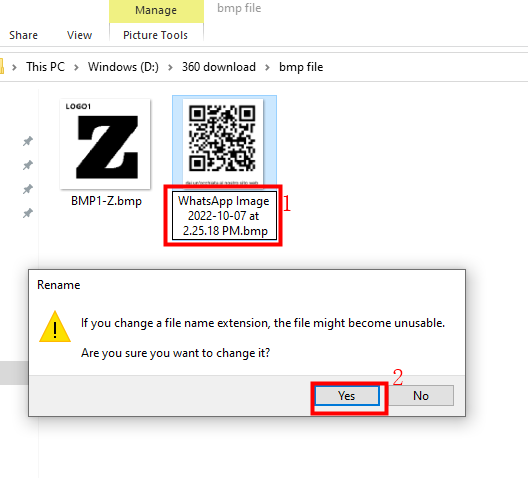

Select the QR code file, click View---check File name extensions----change the file name suffix from .jpeg to .bmp.
