IMC41 E2 double ERROR

The money inlet is too loose:

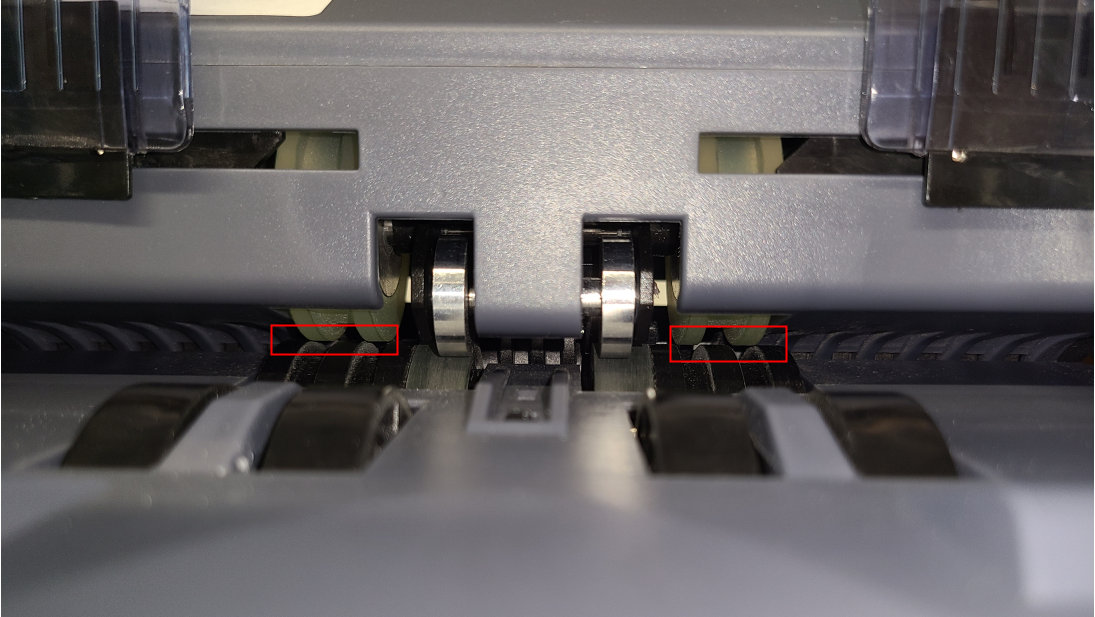

Please adjust the feeding screw counterclockwise according to the video, and reduce the distance of the banknote inlet so that the IMC41 can only enter one banknote at a time.

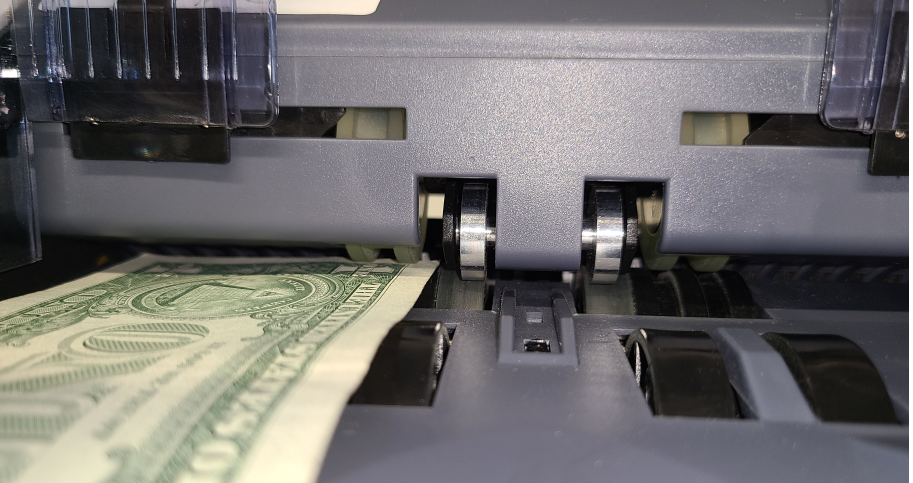

a. Use a US dollar bill to check the pressure of the banknote inlet. If it is easy and the banknote can be inserted without feeling friction, then the banknote inlet is too loose

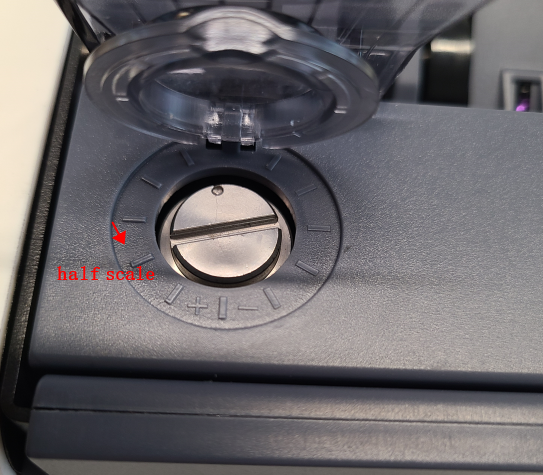

b. Open the screw protection cover, use a key or a coin to turn the screw counterclockwise for half a scale

c. Repeat the ab operations until one dollar bill can feel the friction force to be inserted, but two bills cannot be inserted

d. After adjusting the distance from the banknote inlet, try counting banknotes.

demo video：http://u.pc.cd/vRc
