How do I restore the unit back to factory settings?

After fine tuning the screw and CIS calibration, if there are still some errors or the counting is still not correct, returning to the factory default setting mode is required.

1）Long press the Menu button to enter the main menu, and choose the "service menu" with the password “9999”, as shown in the following figures. Then choose “Back to Default Setting.”

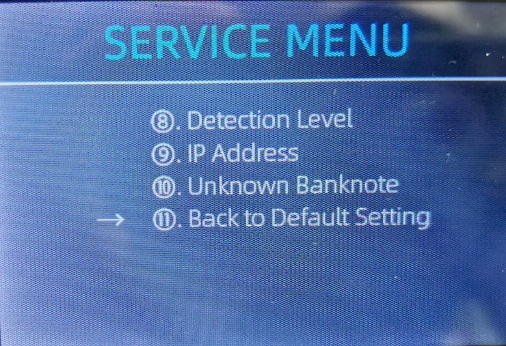

Figure 2-24 Service Menu

Figure 2-25 Default Setting Interface

2）After pressing Restart button, the IMC08 will reset all the changed settings before settings to factory default, see below figure.

Figure 2-26 Default Setting Guide

3）Back to the main menu and touch the Hopper Sensor, the location you can see in the below picture. The processing wheels and rollers in the IMC08 will run for a while.

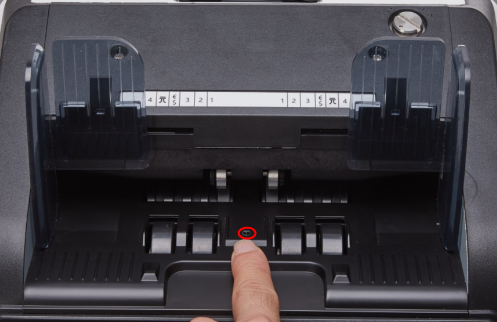

Figure 2-27 Touch the Hopper Sensor
