IMC08 What to do when bills are consistently deposited in the top secondary tray(SIZE error)

1.Pay attention to the way you deposit bills

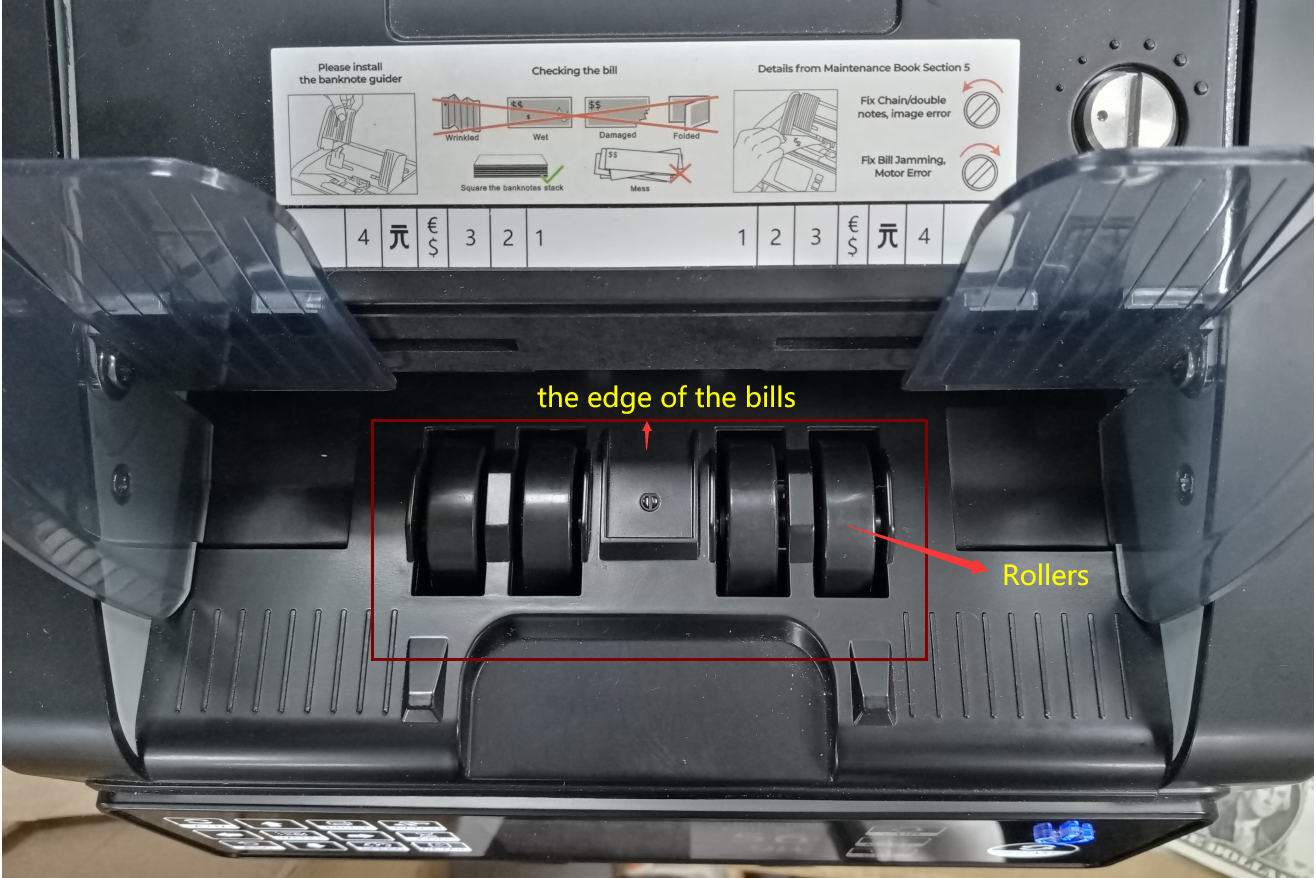

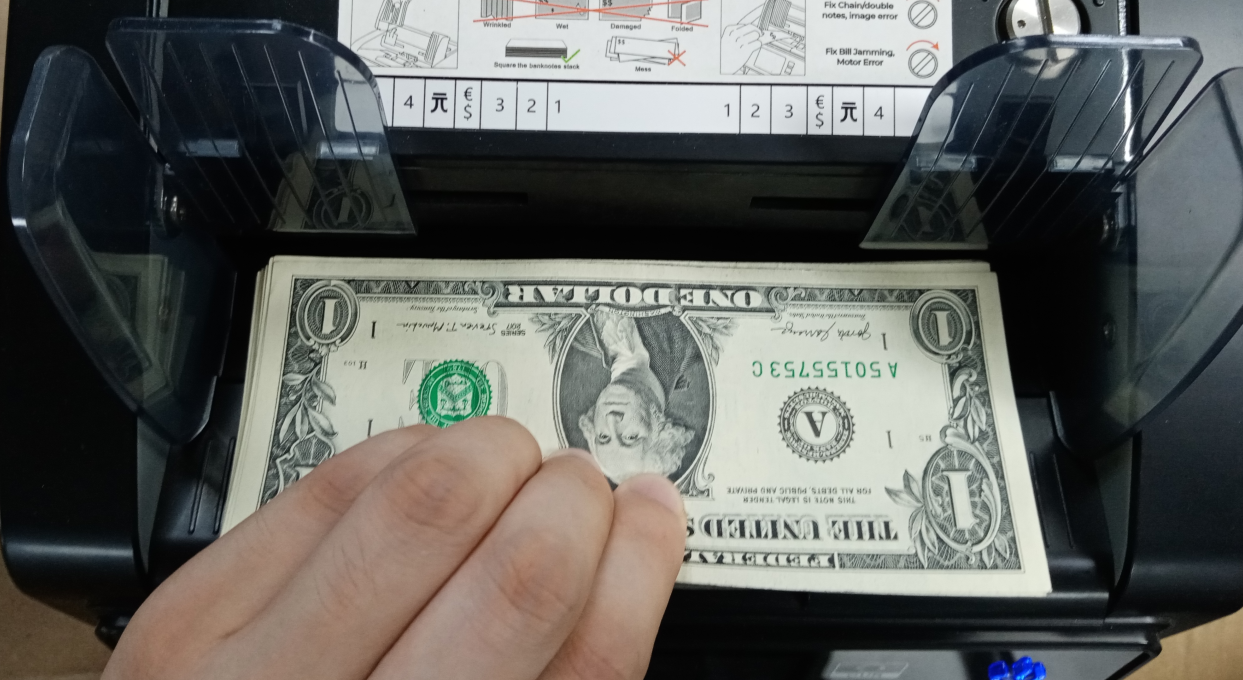

Place the banknote parallel to Hopper and the edge of the bill should not exceed the Roller in the direction perpendicular to the Hopper. then hand up it slightly on the Hopper before the Roller automatically rotating.

In this way, the banknotes can enter the banknote detector smoothly and orderly one by one from the bottom banknotes.

2. Frequent SIZE Error

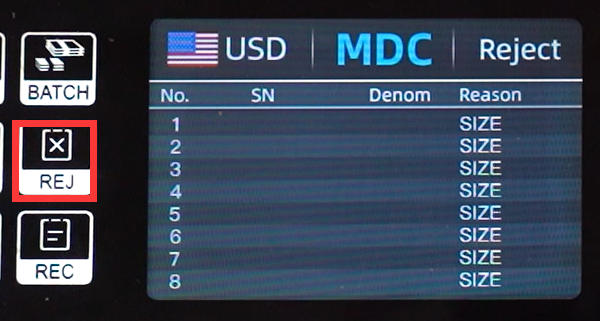

If you have followed the first step to correctly place the banknotes, but all of the sudden it counts bills only depositing them in the top secondary tray, no bills go to the primary bottom tray, and you can press REJ button to see the reason is SIZE, please adjust this screw counterclockwise, it is recommended to first turn the angle of a dot, and get a test to run the banknotes, if there is still an error reported, then turn the angle of a dot again.

Demo video:http://u.pc.cd/WKditalK
