Print Density And Width

Density：You can set the density to larger value by the setting tool (printerTEST) that comes with the link:http://u.pc.cd/eXe

There are 2 different ways to set it with the tool.

1、With printerTEST 3.3

Go to ‘Advance’---> ‘print density’--->select a larger value and click the setting----the printer will respond a noise.

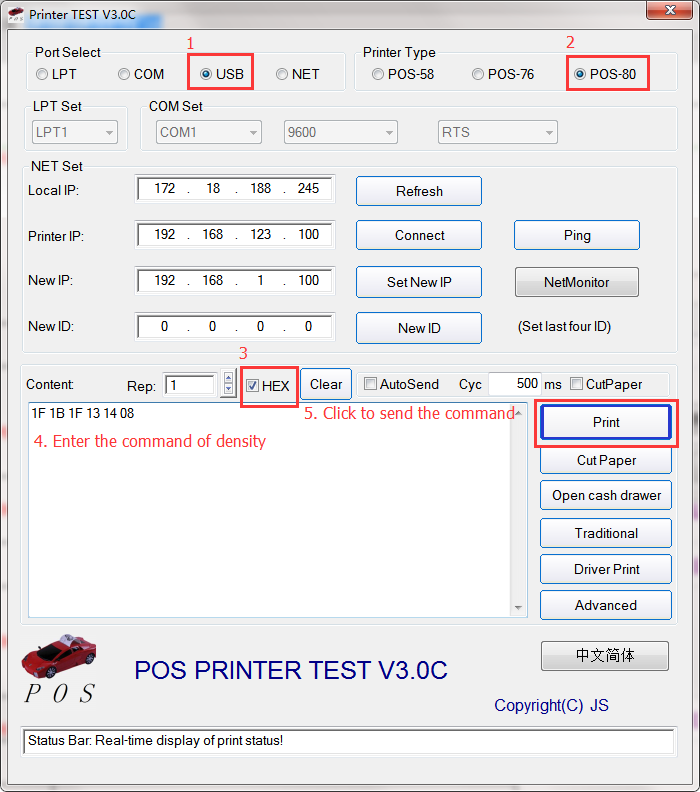

2、With printerTEST 3.3

You need to select the ‘HEX’ option and enter the command ‘1F 1B 1F 13 14 08’ to adjust the printing density in the input window (the N can be 01 to 08, the 08 means the largest value), then click the print to send the command to the printer to finish the setting.

*If increasing the density still not help to make the printing clearer, please change a new thermal paper and clean the printer head with cleaning pen or cloth with alcohol .

This video shows how to clean the printer with cleaning pen: https://bit.ly/printerheadcleaning

Width：You can set the width by the setting tool (printerTEST)

1、With printerTEST 3.3

Go to ‘Advance’---> ‘printing width set’--->select a size you want

Notice：After clicking setting, the printer beeps, indicating that the modification has been successful.
