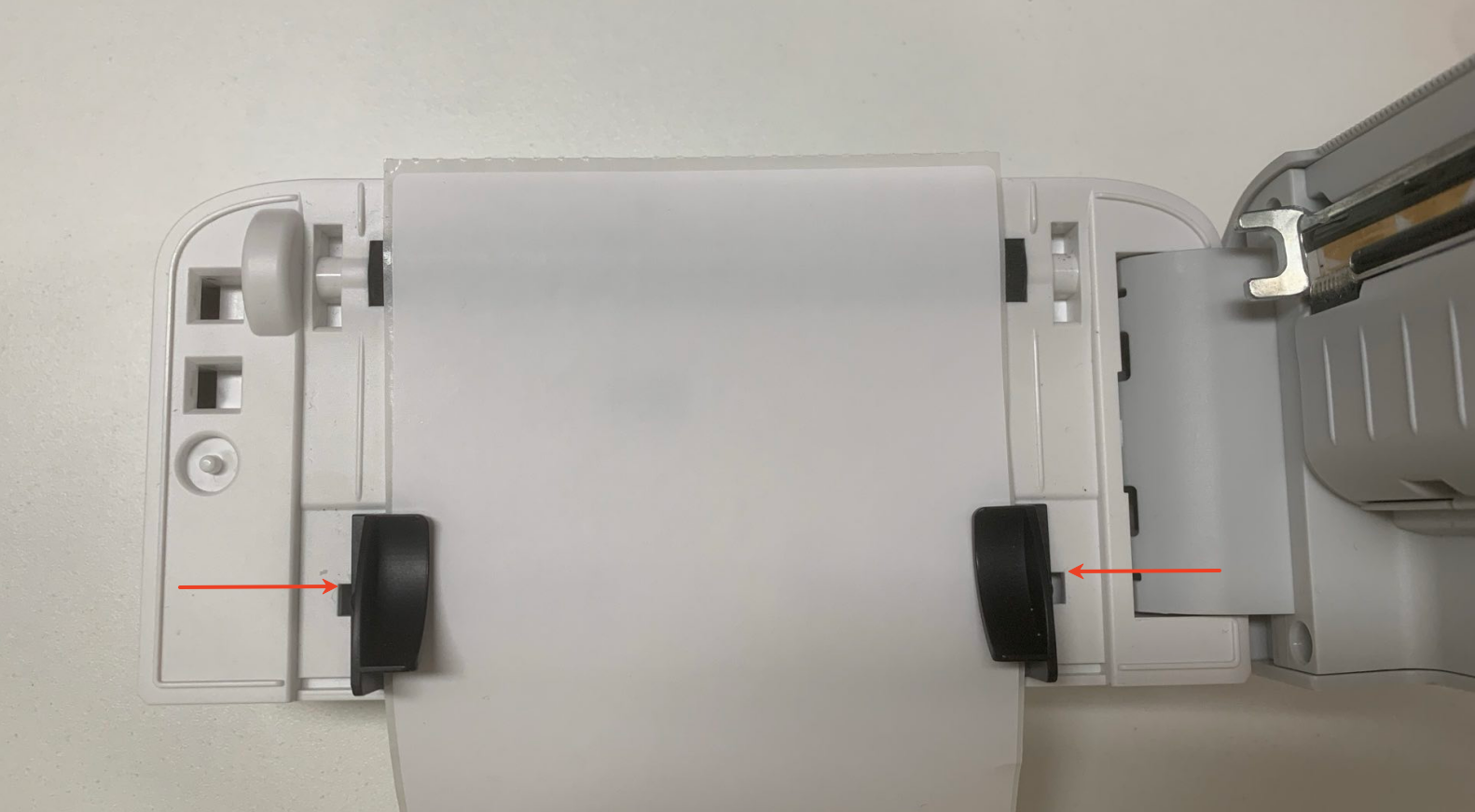

When you are printing a large number of labels consecutively and they become increasingly skewed, you can check whether the label paper is secured using a fixed bracket.

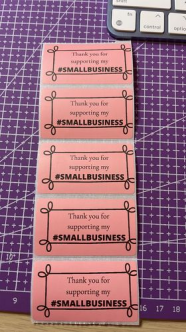

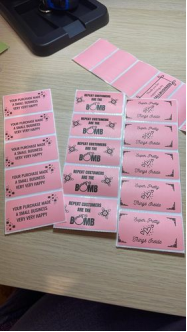

When the image you print is not centered on the label, and if it is only a few millimeters off rather than missing a large area, as shown in the picture below.

We can adjust the print result by setting the offset value in the horizontal offset or vertical offset in the print settings.

Note:
- The Horizontal Offset controls the left and right movement of the label image.
  Horizontal manual adjustment of negative number is left adjustment, positive number is right adjustment.
- The Vertical Offset controls the up and down movement of the label image.
  Vertical adjustment A negative number is adjusted forward and a positive number is adjusted backward.

  For Phone (Bluetooth Models)：

  The adjustment of offset is not currently supported in the "MUNBYN Print" App.

  For Mac：

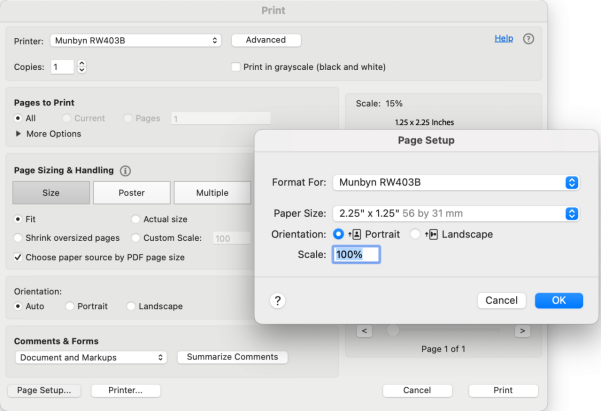

  (1)Make sure you've picked the right printer model and the matching paper size.

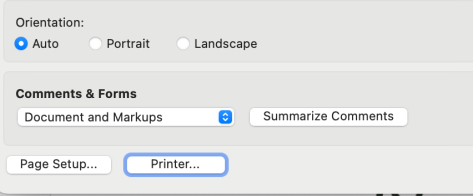

  (2)Then click "Printer.." .

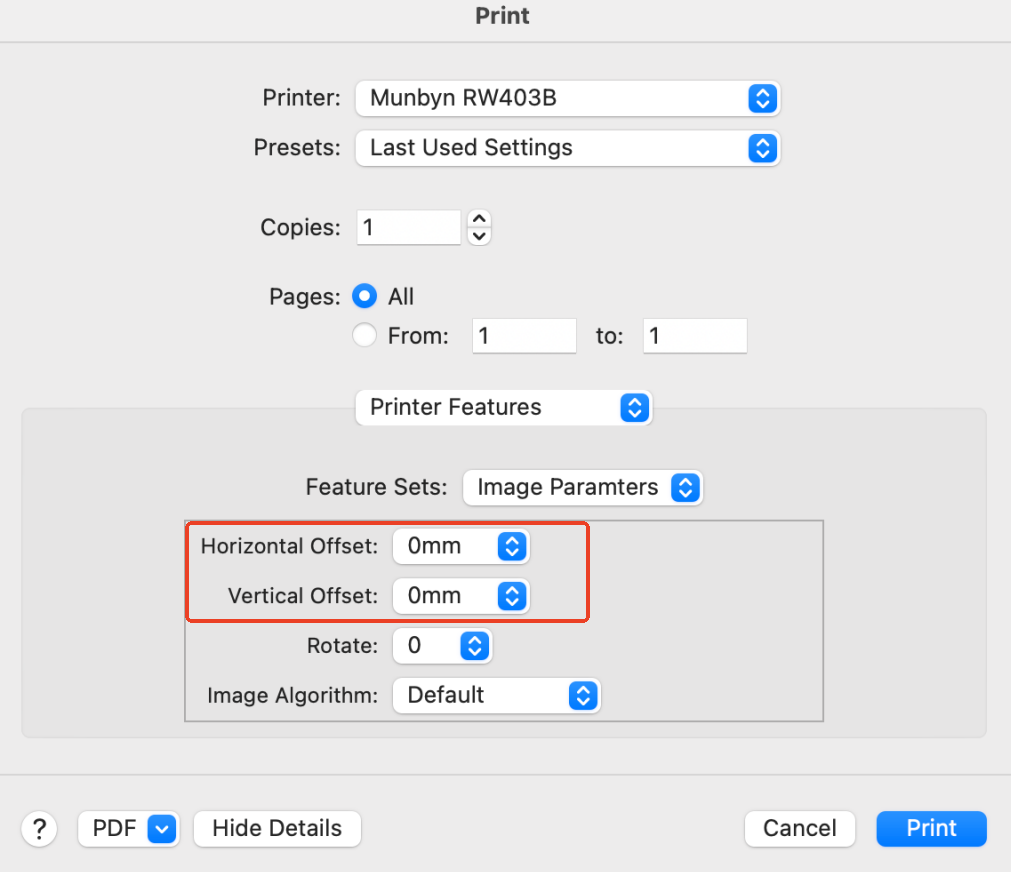

  (3)Choose "Printer Features" -> "Image Paramters", then adjust the vertical and horizontal offset value according to the printing situation.

  For Windows：

  You can do this by entering:

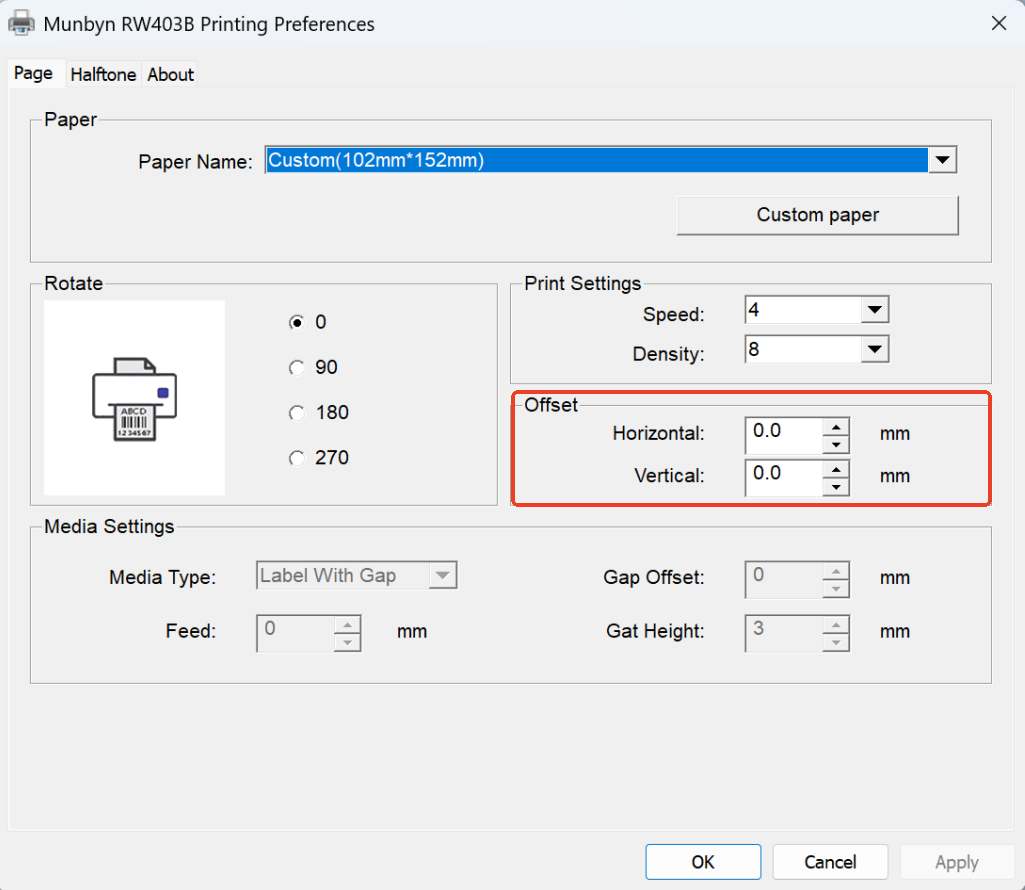

  Settings -> Bluetooth & devices -> Printers & scanners -> Click on 'Munbyn RW403B' -> Printing preferences -> Page.

Select the corresponding paper size. If there is no corresponding size, please create a new paper size (special shape).
You can create new size options by following this article:

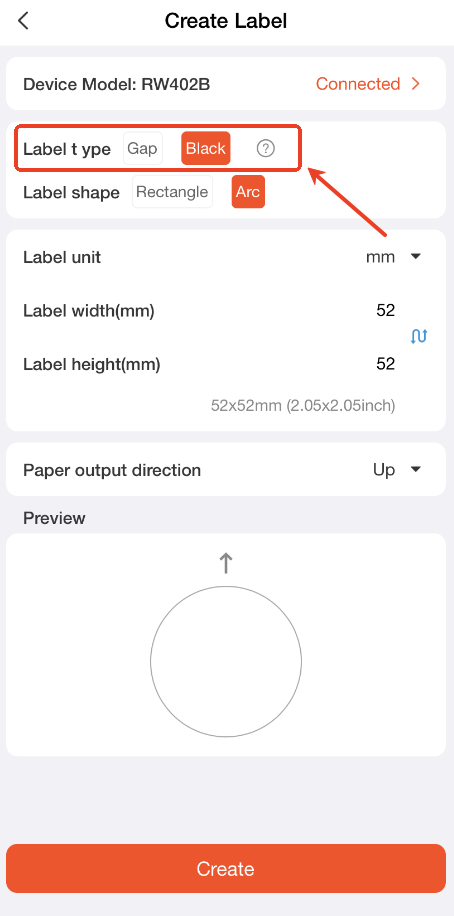

Type: Select tag type.
Type: Select tag type.

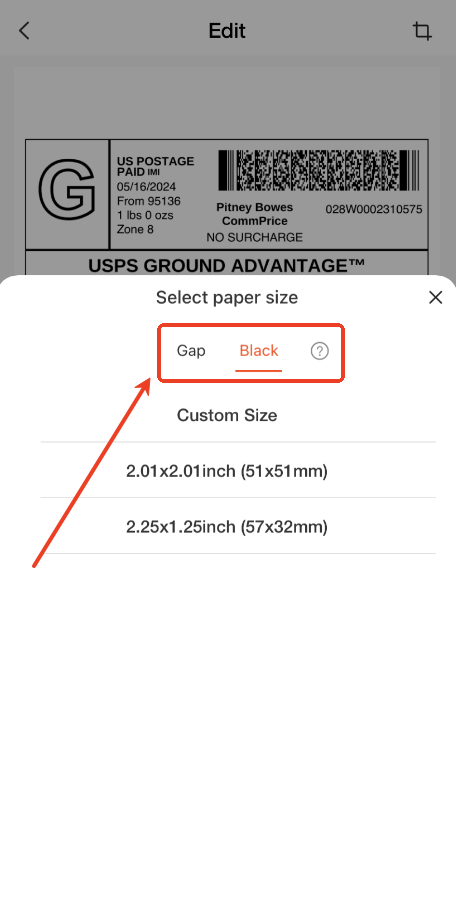

Dashed lines represent gap paper, while solid lines without gaps represent continuous paper. Special paper will have a black mark on the baseline for machine positioning. Please select the corresponding paper.
Additionally, it may also be because we are using a thermal printer and thermal adhesive labels. There are gaps between the adhesive labels, so we need to set these values in the printer according to the label paper's gap (the gap for MUNBYN brand label paper is uniformly 3) to ensure that the adhesive labels can be printed continuously.
