Note: The Bluetooth connection is only suitable for the Bluetooth printer ITPP047USEB/ITPP047P-USEB/ITPP047P-UB. You can find the model number on the label at the bottom of the printer.
Connecting to POS Software
1.For ITPP047P
Note: ITPP047P-USEB and ITPP047P-UB are set to Epson mode by default, so there's no need to change the Bluetooth name. They can directly connect to POS software that supports Epson brand printers.
1)Find the printer 'TM-m30 b001' in your Android device's Bluetooth settings and complete the pairing process. The password is 0000.
2)Open your POS app and add the Bluetooth printer 'TM-m30 b001'.
Demo video for ITPP047P-USEB connection with Uber eats on Android device:http://u.pc.cd/qRrrtalK
2. For ITPP047USEB
2.1 Turn on Epson Mode
(1)connect the printer and Windows computer with USB, and make sure the printer is turned on.
(2)Download this test tool: munbyn.biz/tool51

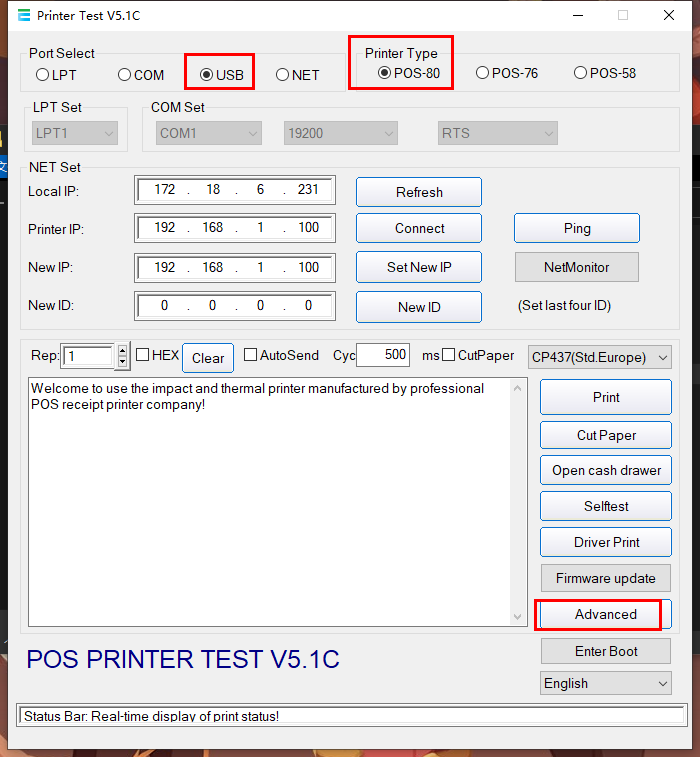

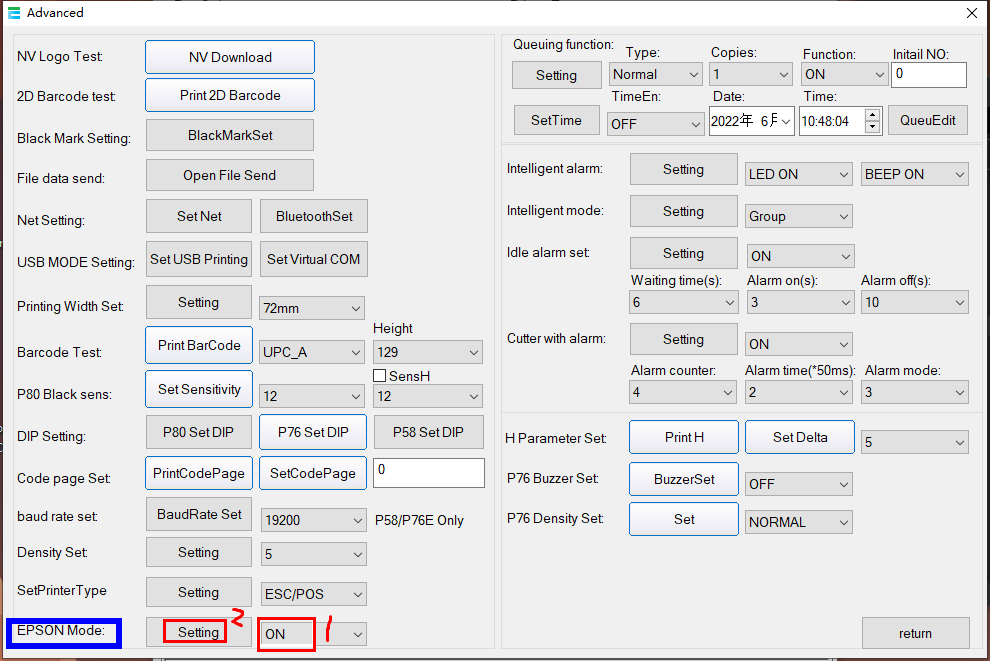

(3)Follow the picture tutorial, open test tool5.1, and turn the printer on to Epson mode (Advanced-EPSON Mode-on-Setting)
Note: Click Setting and hear a beep sound, it means the operation is successful.
2.2 Modify the Bluetooth Name to TM-m30
(1) Use a USB cable to connect the printer and Windows computer;

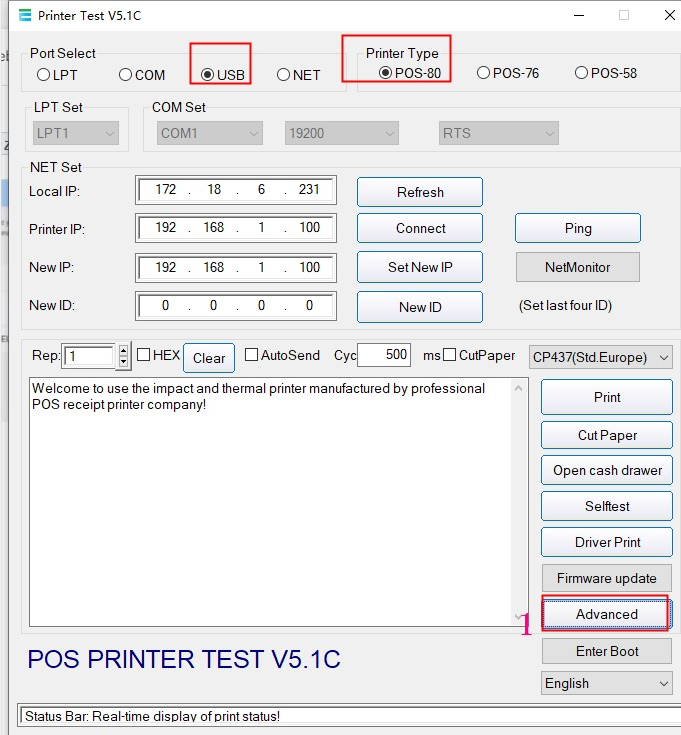

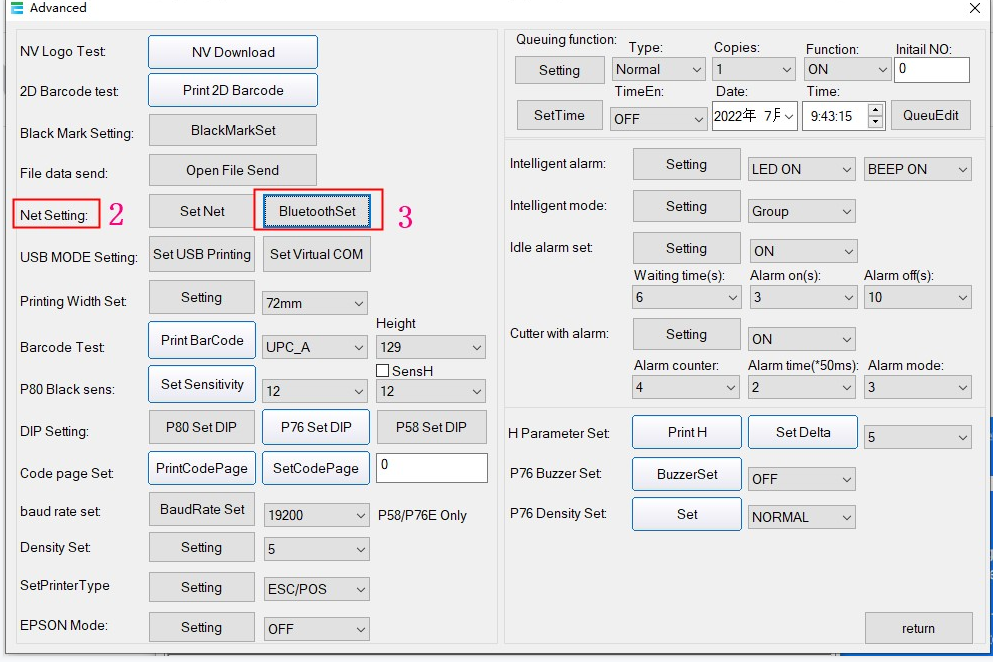

(2) Open test tool5.1, click Advanced----Net Setting----Bluetooth Set----change the name to TM-m30----Setting---hear a beep sound.
(3) Print the self-test page to see if the Bluetooth name is changed: How to print the self-test page: turn off the printer power switch, long press the feed button and turn on the switch, hear a beep, release the feed button.
For Don’t know what POS APP to use
1.1 Download and open the EMlabel APP at the link: http://u.pc.cd/jOictalK
1.2 Select "Thermal".

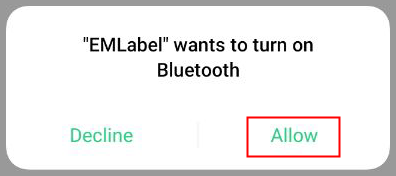

1.3 If you have not turned on Bluetooth, it will remind you to turn on Bluetooth, please select "Allow".

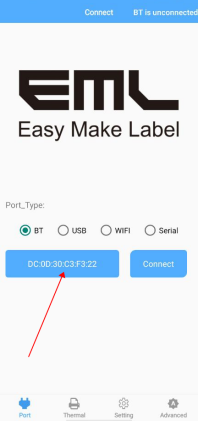

1.4 As shown in the figure below, click the blue button on the left, and then select the corresponding Bluetooth mac option according to the Bluetooth mac on the printer self-check page.
Note: After shutting down, press and hold the feed button and then turn it on. After hearing a beep of bi, release the feed button, and the printer will print a self-check page, which records all the information of the printer including the Bluetooth name and PIN.

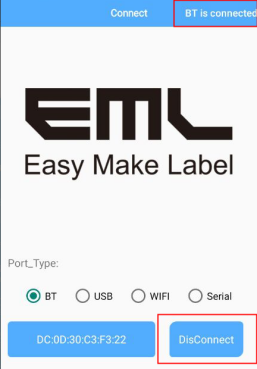

1.5 After returning to the main interface, click the "Connect" button.
1.6 The system will prompt you to enter the password, enter the password 0000 or 1234, you can connect to the printer's Bluetooth.
Demo video:http://u.pc.cd/zWa
