ITPP905 How to Install a Tablet Wi-Fi Printer by web page setting?

1.Before Installing the Wi-Fi Printer

Prepare a router and a network cable, and connect the network cable to the router.

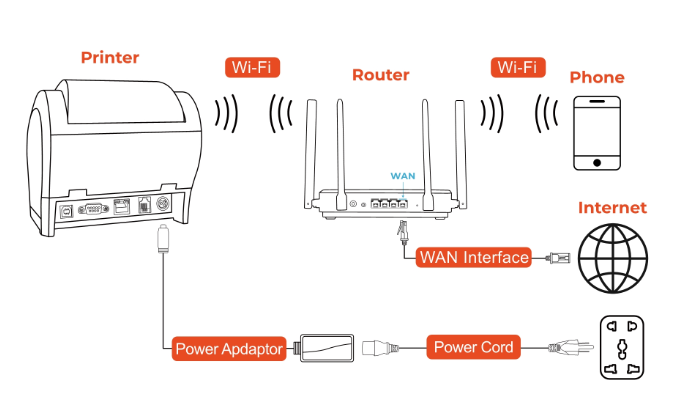

Please connect according to the figure below, make sure the receipt printer is turned on, and the mobile phone is connected to the WiFi that can access the Internet.

2.Wi-Fi Setting and Connection

Demo vedio: http://munbyn.biz/905WiFisetupT

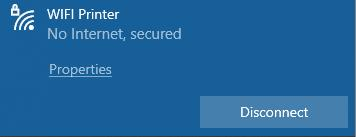

1) Connect the device to printer Wi-Fi.

Note:

Wi-Fi name: WIFI Printer

Password: 012345678

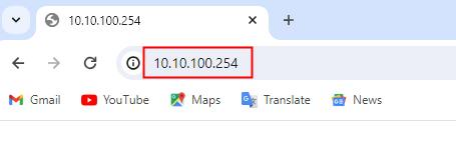

2) Open a browser, input [10.10.100.254].

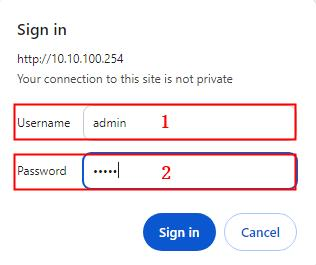

3) The "Sign in" interface will pop up automatically. Enter your [Username] and [Password], click [Sign in]. Your browser will automatically jump to Wi-Fi Setting Page.

Note:

Username: admin

Password: admin

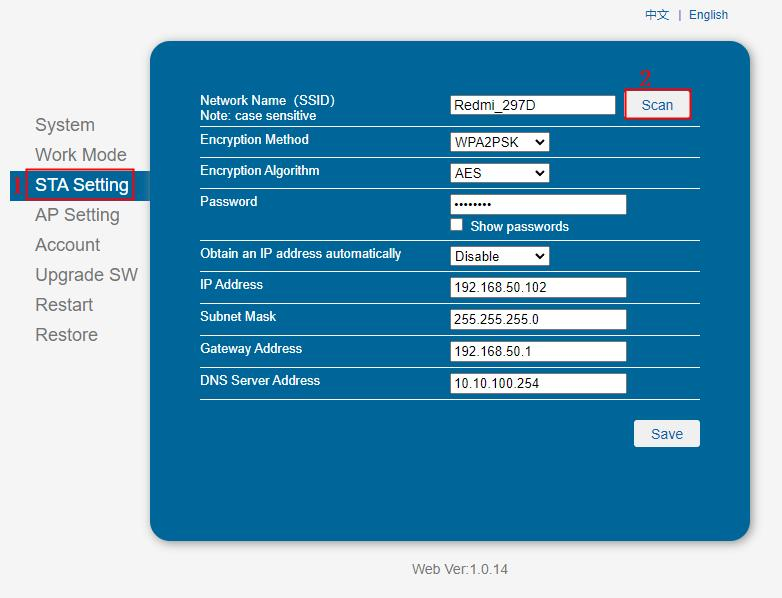

4) Click [STA Setting], then click [Scan].

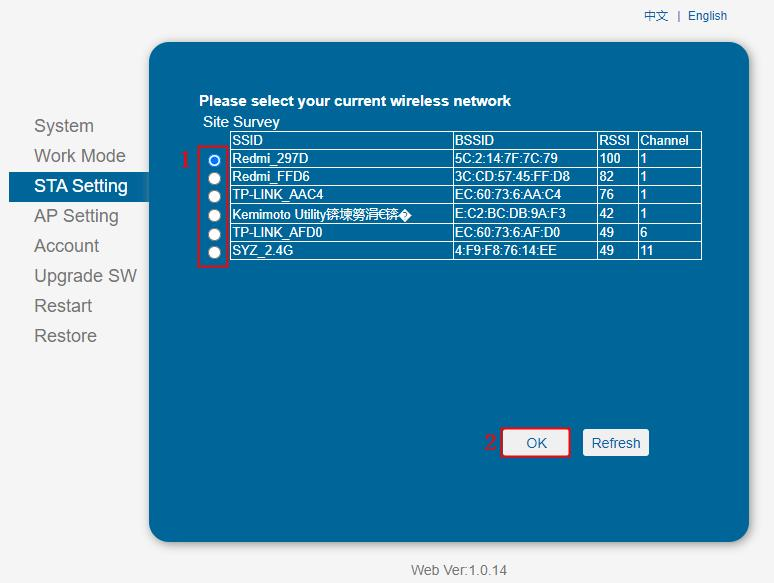

5) Enter the wireless network configuration interface, select your wireless network, and click [OK].

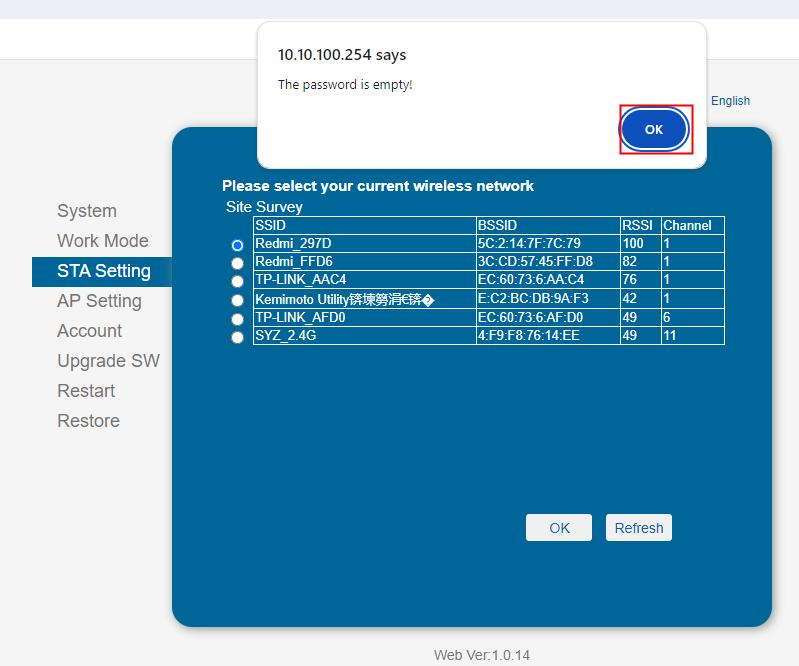

6) The prompt interface pops up "The password is empty!". Click [OK].

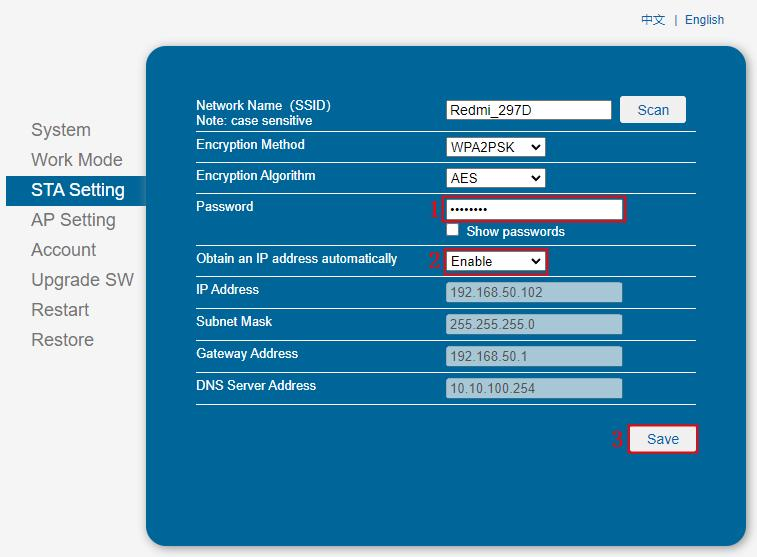

7) Input the password of your chosen wireless network, “obtain an IP address automatically” choose [Enable], and then click [Save].

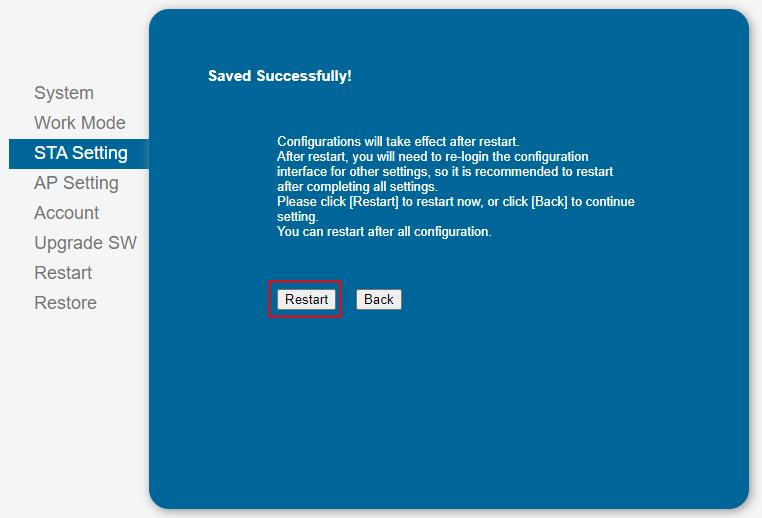

8) The interface "Saved Successfully!" pops up automatically. Click [Restart]

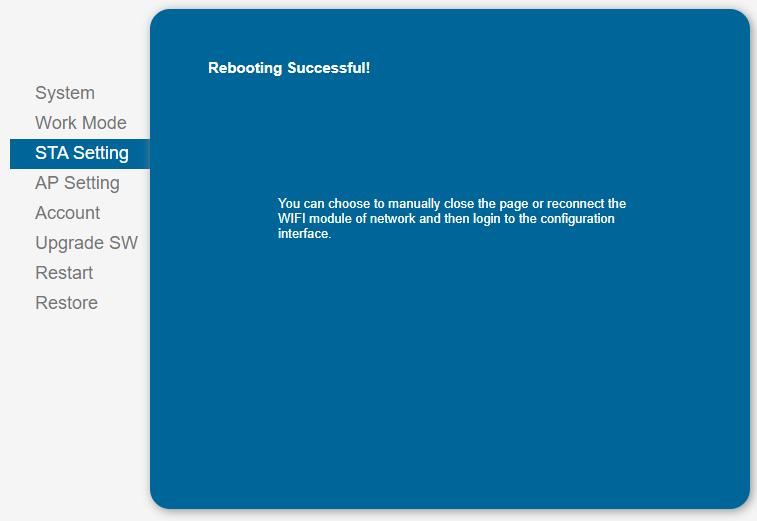

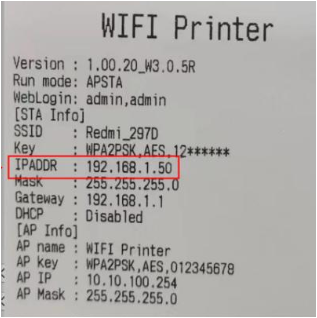

9) The interface "Rebooting Successful!" pops up. Wait about 10 seconds. The printer will automatically print a Wi-Fi page which means the wireless network configuration of the printer is successful.

3.Connection to the POS App

Use the IP address to connect the printer in the Android POS App. Take Loyverse App as an example.

Demo vedio: http://munbyn.biz/905WiFisetupT
