IMC40 CIS calibration（Image error/IR error）

If you're experiencing bill detection errors like E12/E15 (Image Error) or E30-E49 (IR Error), please try calibrating the CIS.

CIS calibration steps:

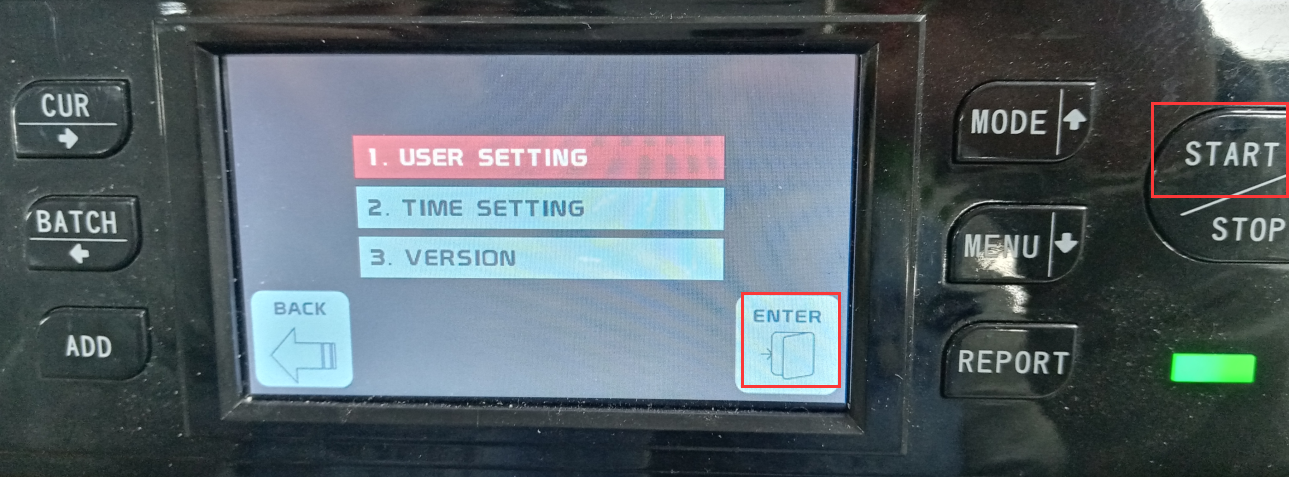

a. Press MENU button

b. Select USER SETTING and input the password 6666

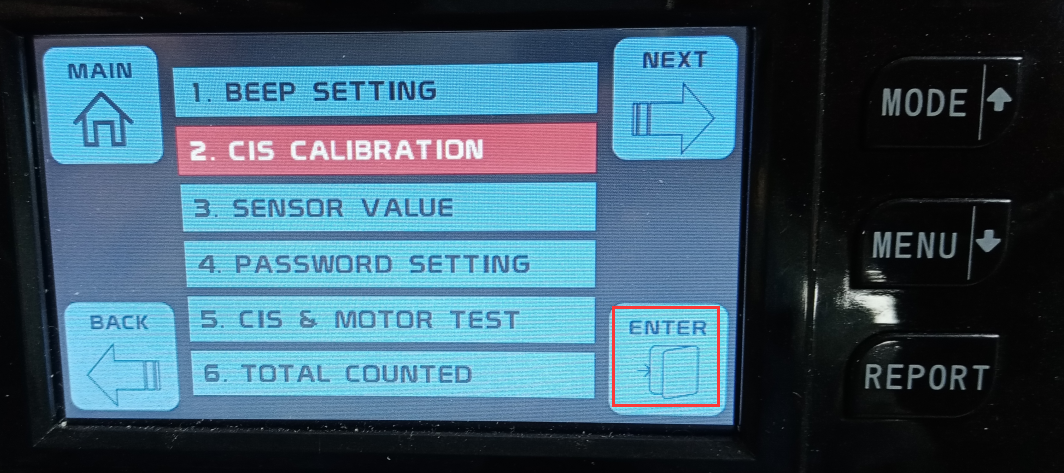

c. ENTER CIS CALIBRATION

d. Follow STEPS 1-3 for calibration.

Demo video：http://u.pc.cd/Hj8ctalK

e. A confirmation message will appear on the screen when the adjustment is successful.

If your problem is still not solved, don't hesitate to contact us.

Phone: +1 650 206 2250

E-mail: support@munbyn.com

WhatsApp: +8618144898200
