When you load in a new direct thermal label, there are two actions that need to take place:
1) Run the automatic label identification on the printer.
2) Set proper label settings on your computer.
3)Run the automatic label identification.
①Disconnect the USB cable from your printer, then turn the printer off.
Press and hold the Feed Button until you hear one beep, then release.
②Printer will determine the gap size and other properties of your label.
③After the determine, re-connect the USB cable to the printer and resume printing.
Check the segment of the video " MUNBYN Introduction Of Feed Button Mode".
https://www.youtube.com/watch?v=xo0zl6VAWM4&list=PLWHuumZXv30MSGeuvWQJxNLmwi-e7HERV&index=4
2) Set your custom label size

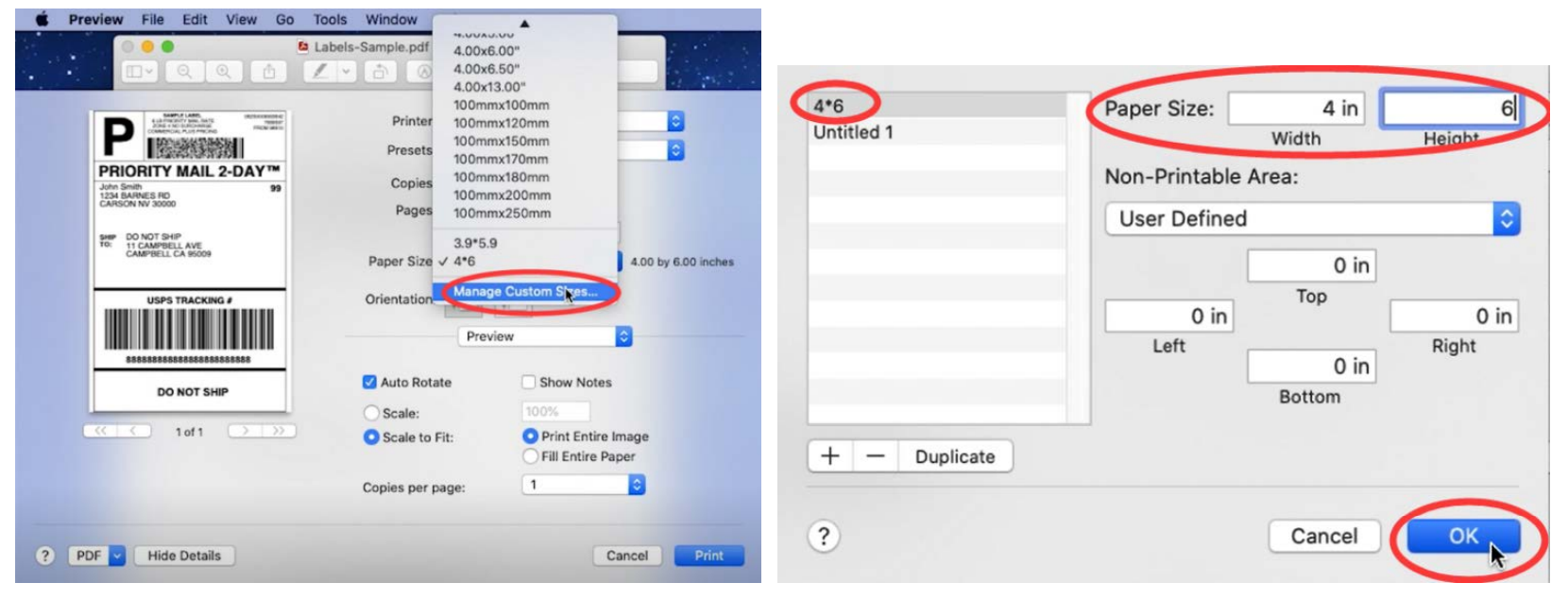

①For Mac:
Select or input label width and height that matches label size installed in printer in prompt window.
②For Win:

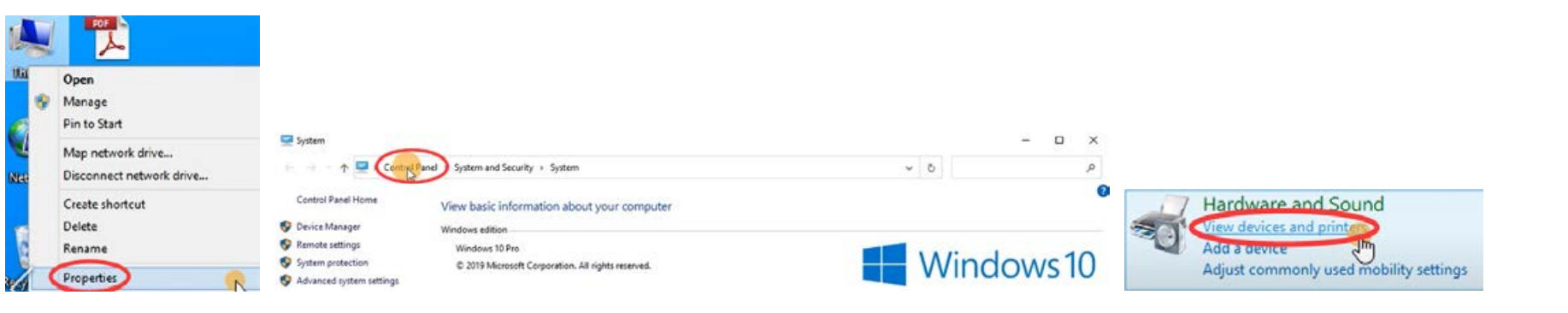

Go to "Control panel" -> "Devices and Printers"
(Right click on "This PC", choose "Properties", then click on "Control panel"-> "Devices and Printers")

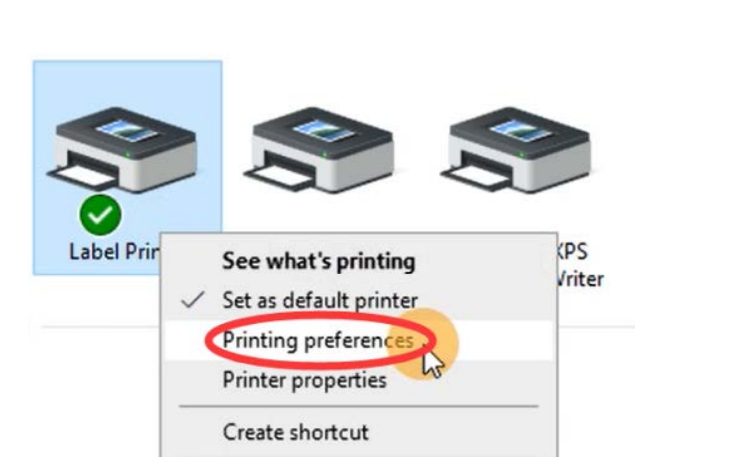

->Right click on "Label Printer" -> choose "Printer Preferences"
-> Go to "Page Setup" -> Select the paper type in "Name"
If there is no label size you need, you can click "New" to create a label size.
Change Paper name and input width and height, click "OK"
Third step:
The application you are using (e.g. Adobe Reader) could be over-riding your driver label setting and sending the print in a larger / smaller size to the printer. Look for "Page Setup" or "Paper Size" in the print prompt and ensure it is set to the size you want.
