IMC21 How to do CIS calibration

This is a link for the guidance video: Click here.

Below is a step-by-step instruction.

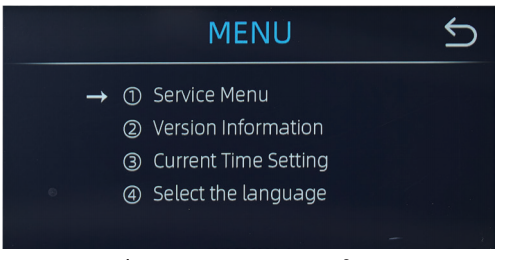

Step 1: Press the 'Menu' button to enter the Menu

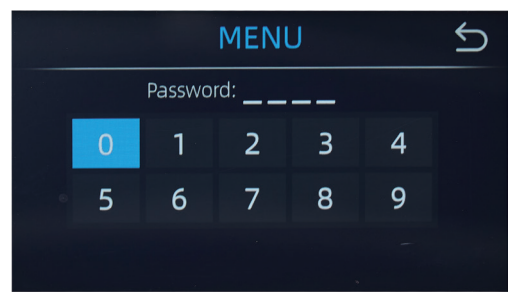

Step 2: Click '1. Service Menu' . Input the password '9999'.

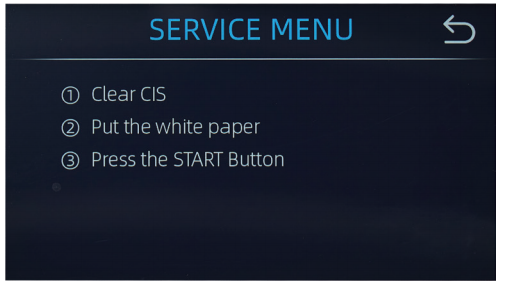

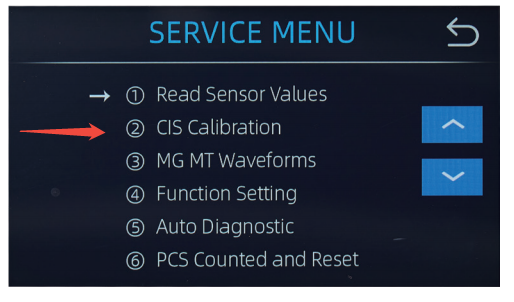

Step 3: Click '2. CIS Calibration' to enter the Calibration interface.

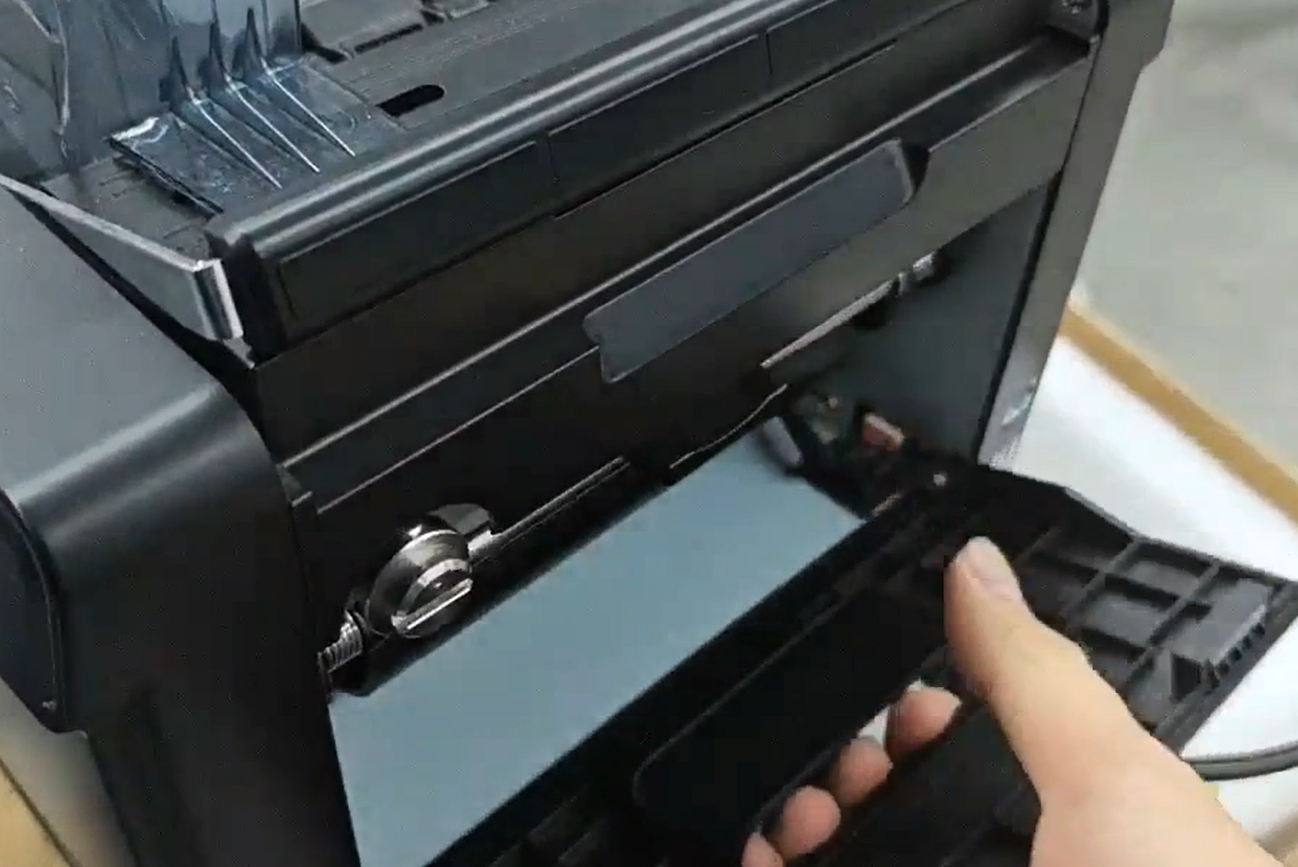

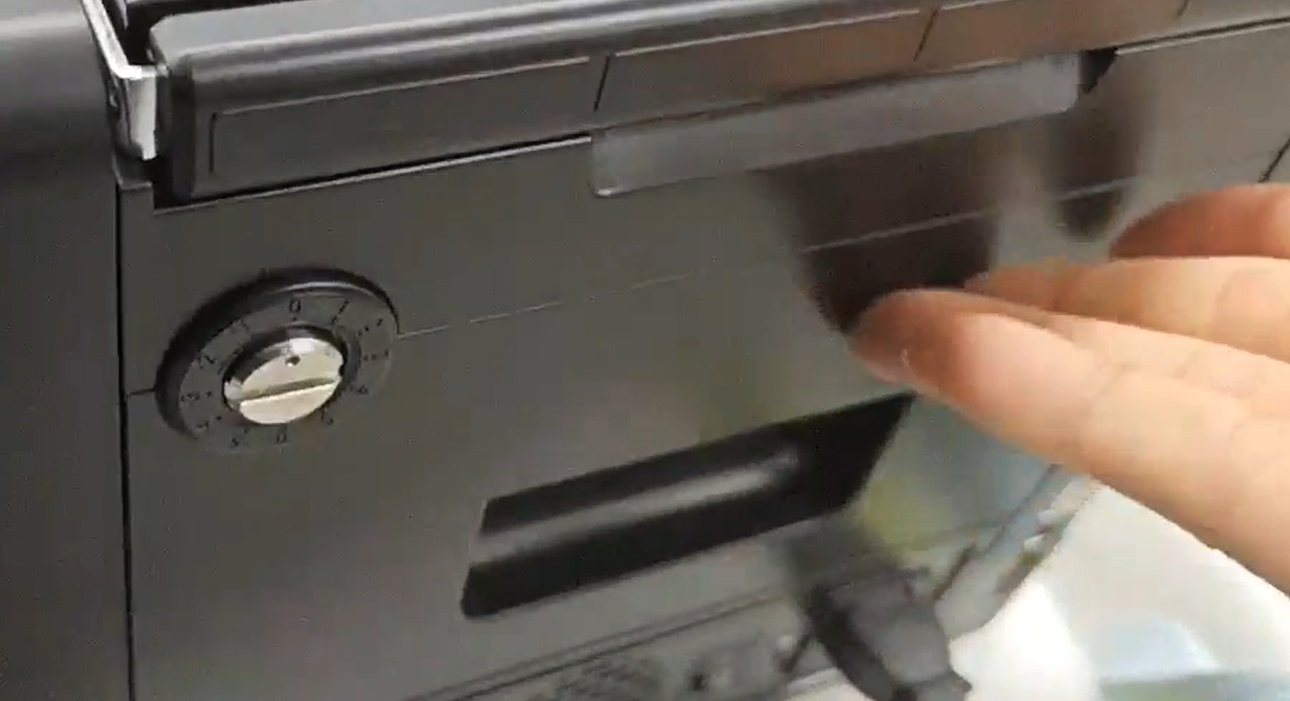

Step 4: Open the back cover.

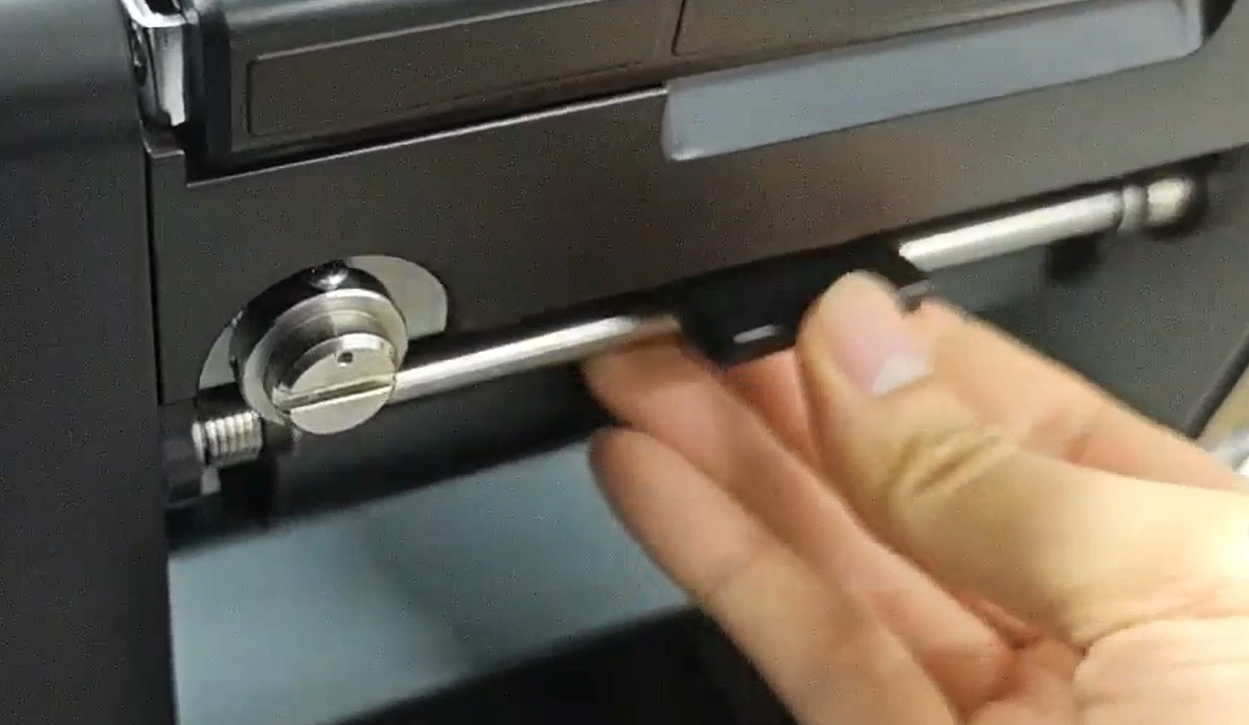

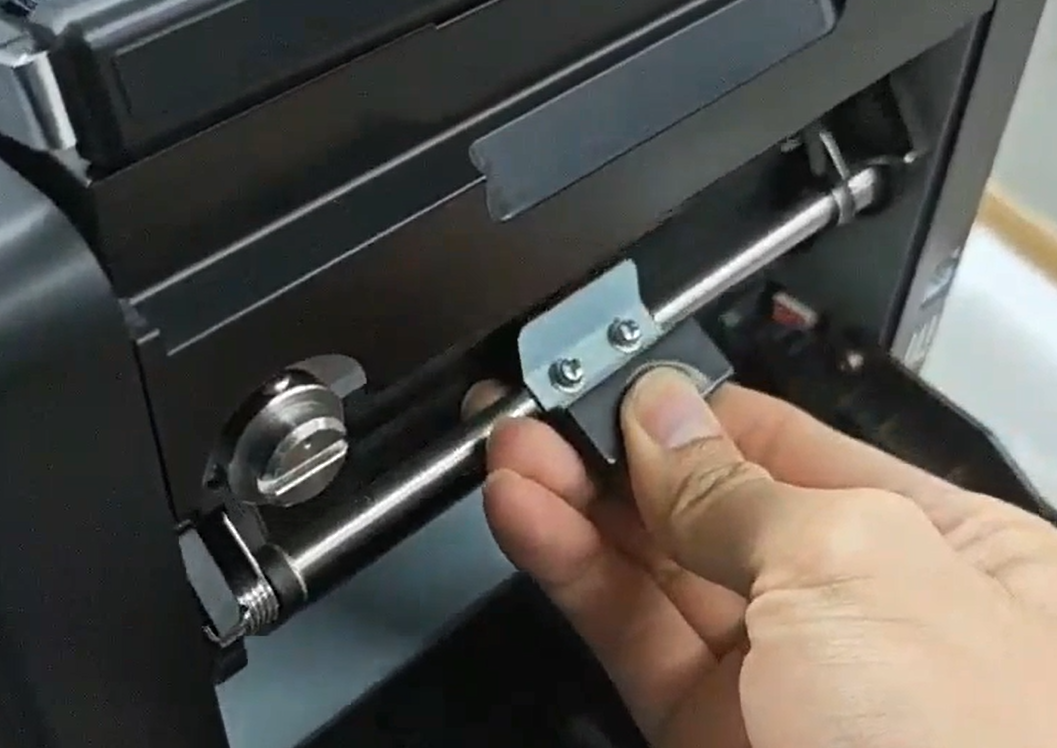

Step 5: Open the inner flat.

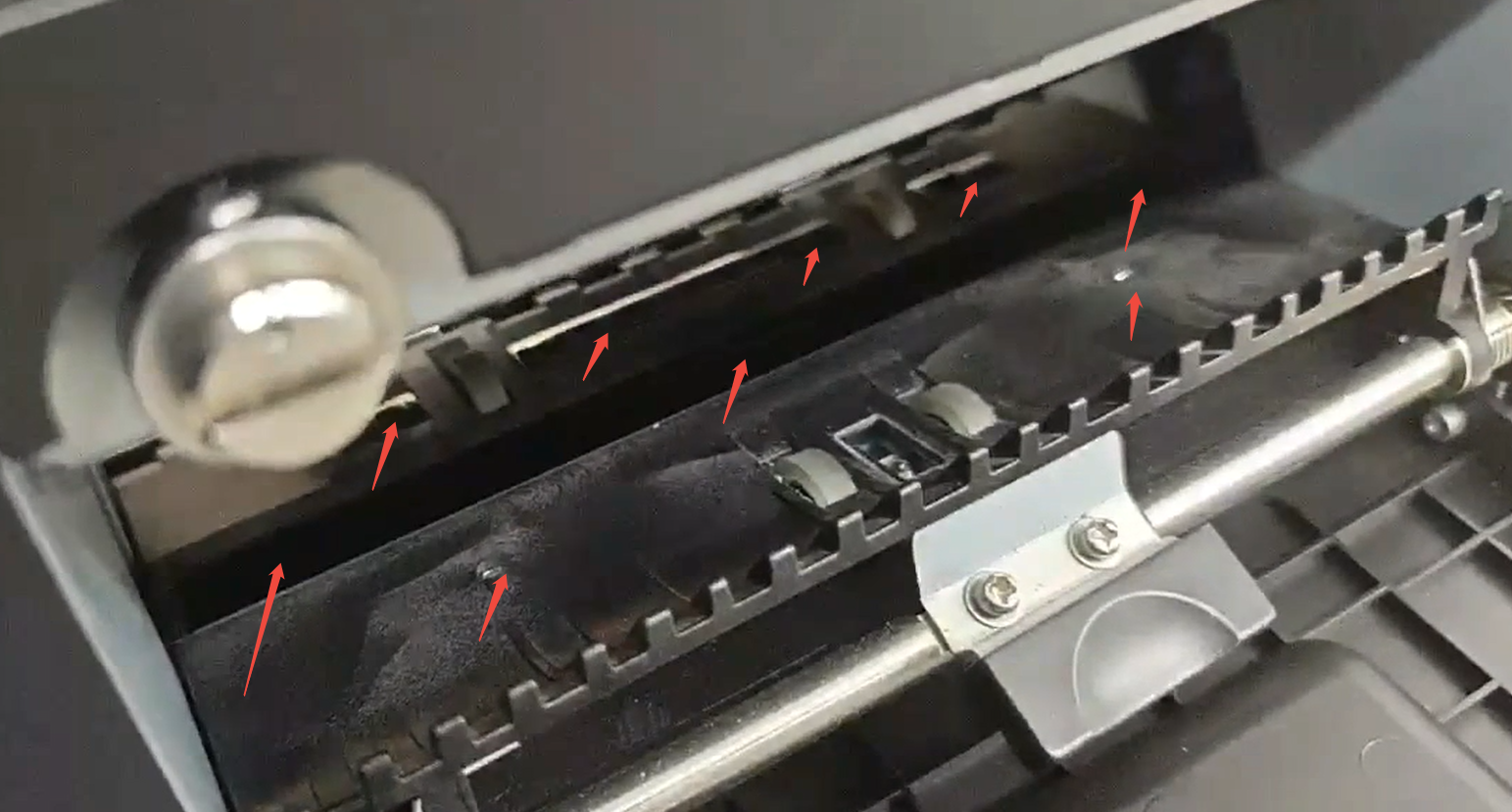

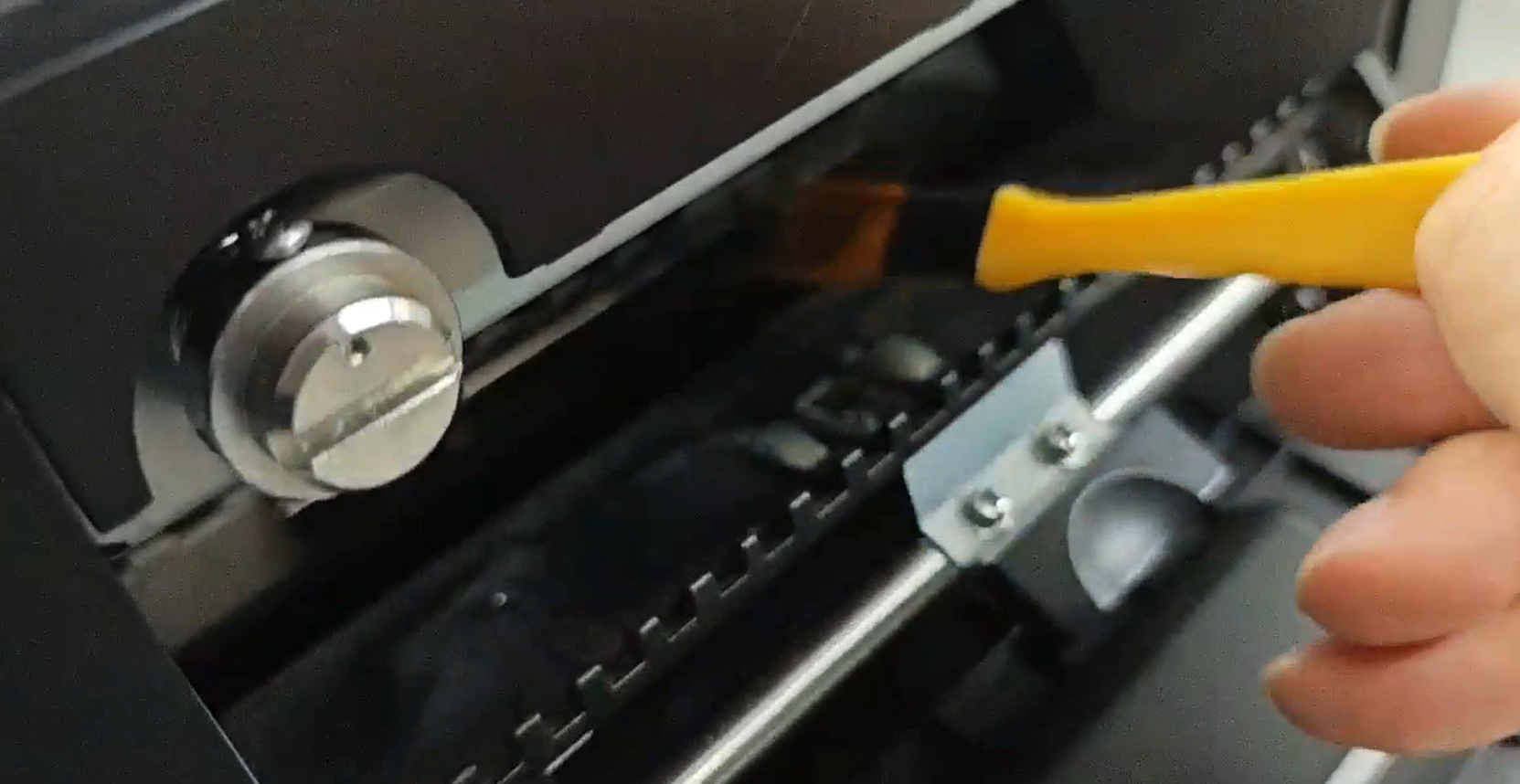

Step 6: Clean the CIS sensor with the soft brush and soft cloth which are in the counter's package.

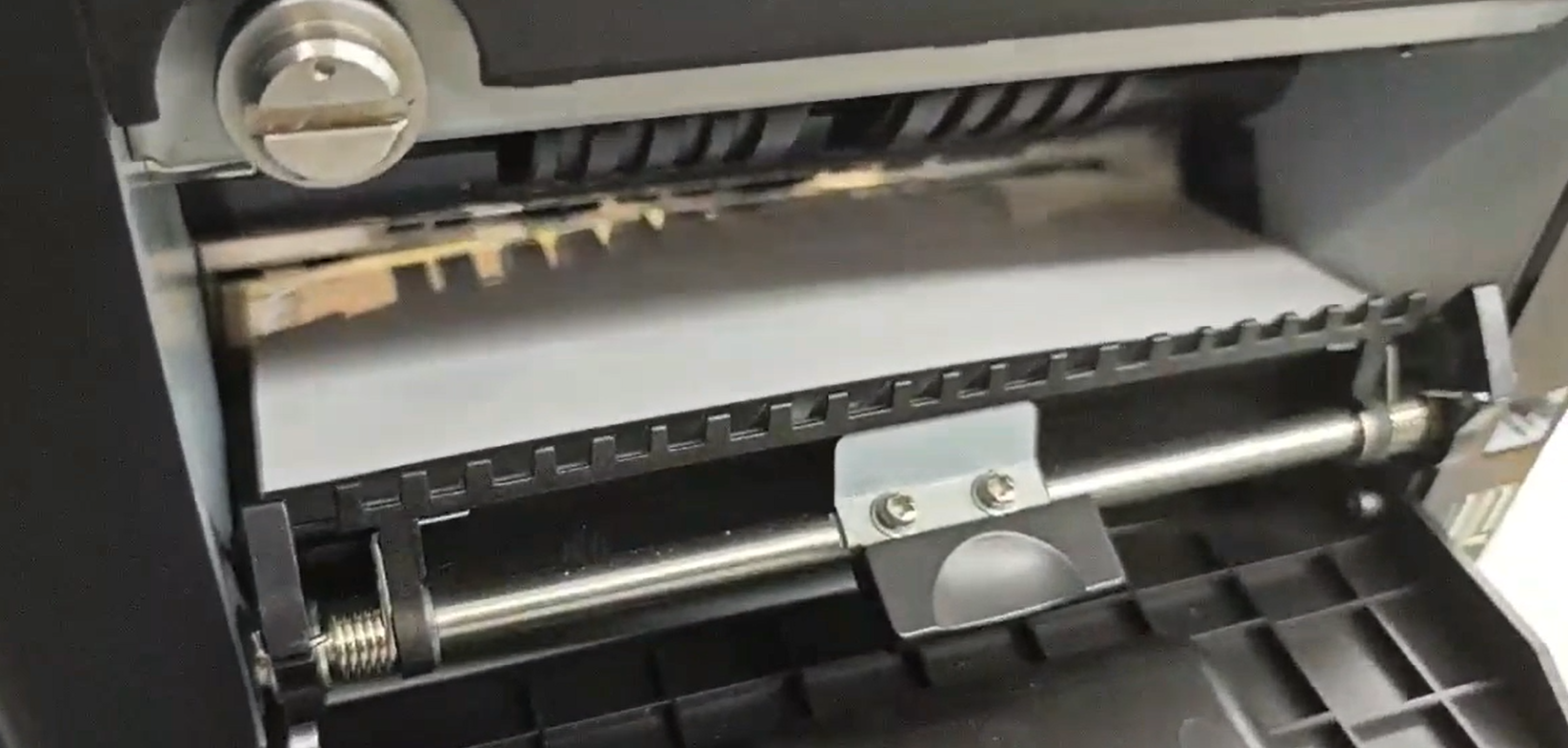

Step 7: Put the CIS paper on the sensors.

Step 8: Close the inner flat and back cover.

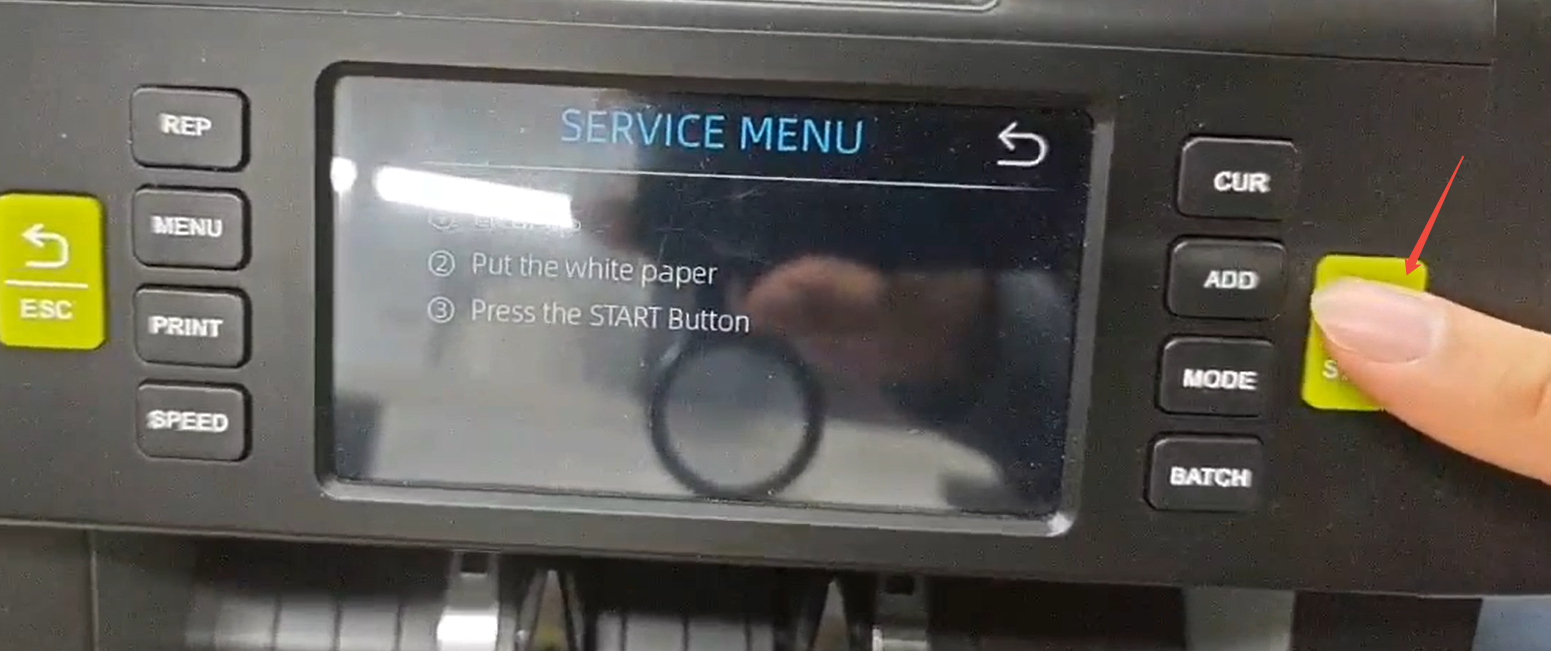

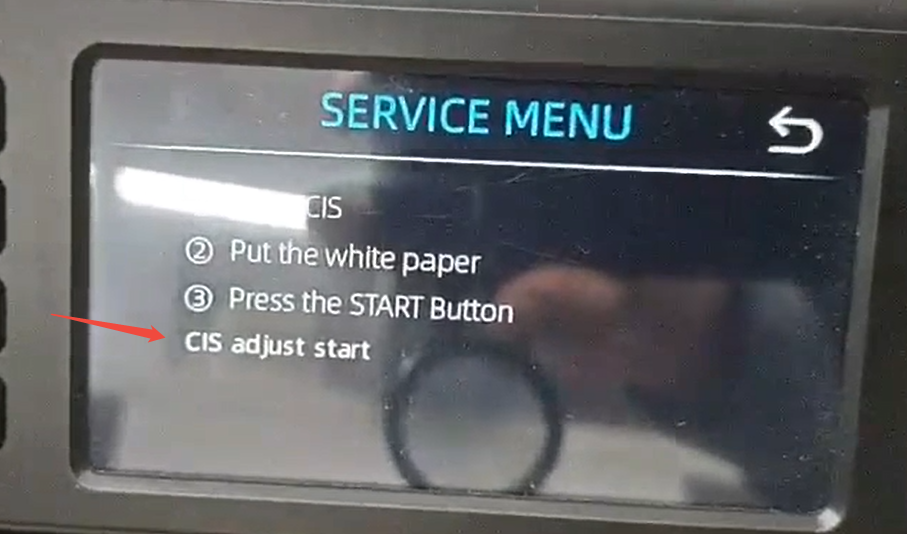

Step 9: Press the 'START' button. Then the counter will start the calibration process.

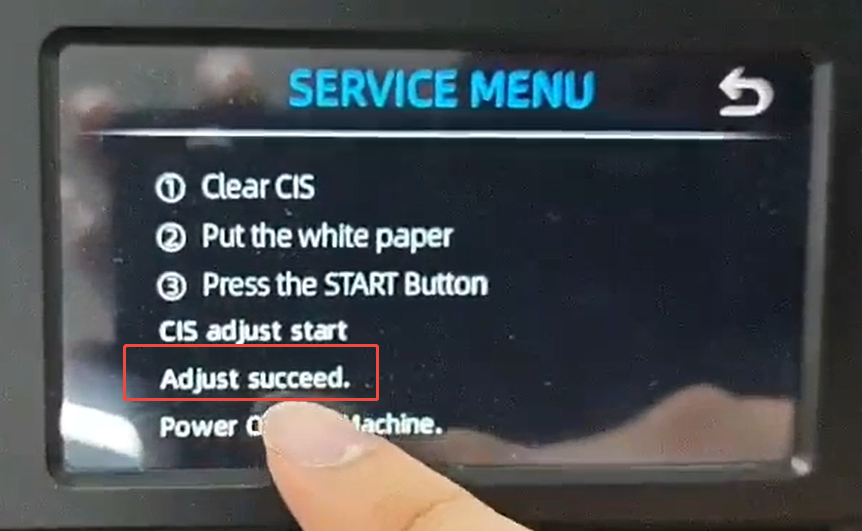

Step 10: Wait for about 15~30 seconds. It will show the result of calibration. If the result is 'Adjust Succeed', it means the Calibration process is successful.   If not, please send the screenshot of the calibration result to Technical support engineer. (Email: support@munbyn.com   WhatsApp: +8618144898200)

Step 11: Power off the Machine. Open the back cover and inner flat to remove the CIS paper. Then Close the inner flat and back cover as in Step 8.

Step 12: Power on the Machine. The calibration process is finished.

Please contact our Technical support engineer if you have any questions.
