How to Install a Windows Printer Using a LAN Cable?

Note: To use the ITPP047 in a Windows environment, you need to download this printer driver in advance.

• Get the Windows driver from the link: http://u.pc.cd/UeTctalK
• If your system is updated, please uninstall the driver before installing it.

1.Before Installing a LAN Printer

1. Connect the printer to the power outlet through the power cord, put the thermal paper into the printer
2. Prepare a router and two network cables. Connect one end of the first cable to the Internet and the other end to an available port on your router.
3. Connect one end of the second network cable to a port on the printer, and then connect the other end of the cable to an available port on the router when the printer power is off
4. Turn on the printer, it can automatically obtain a new IP address through the network in 5 seconds.

A: Connect the computer to the router with a network cable. Please see the picture below.

Demo video: https://munbyn.biz/3BJ7Nty

B: The computer is connected to the wireless router. Please see the below picture.

Demo video: https://munbyn.biz/3p5PNEM

2.Install a LAN Printer

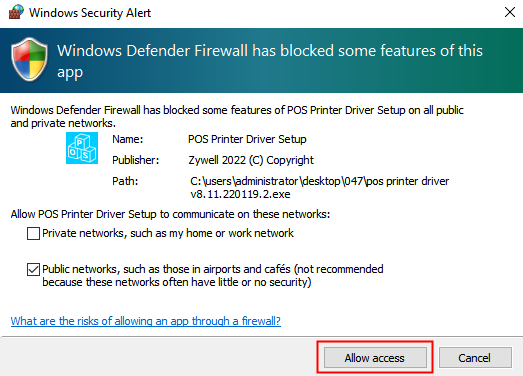

Note: During installation, a Windows Security Alert may pop up, showing that Windows Defender Firewall has blocked some features of this app. Please click "Allow access". This driver has been fully tested on all current versions of Windows.

(1)Double click "POS Printer Driver V8.xx.exe".

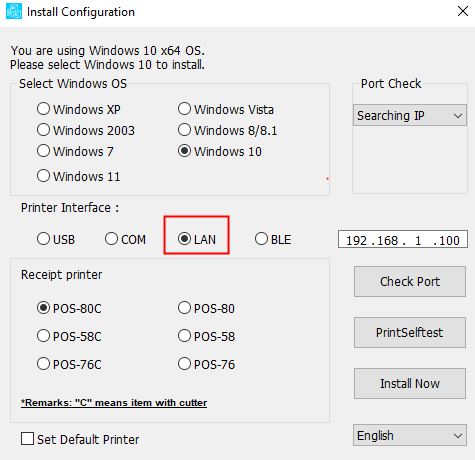

(2)Select "LAN" and wait about 10 seconds, then the printer IP address will be displayed in "Port Check".

Note: If you cannot find your printer's IP address, please check whether your network connection between the printer and your computer is correct. Close and reopen the program and restart the printer.

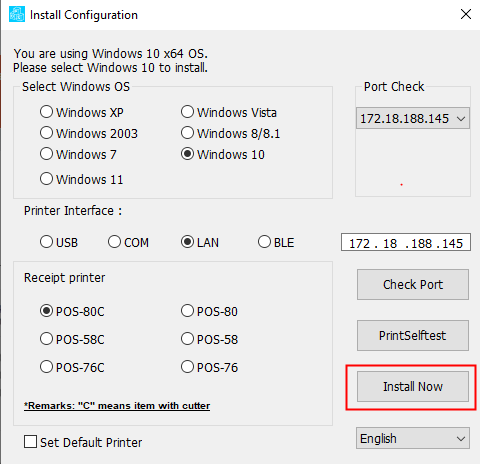

(3)Click the IP address displayed by the "Port Check", the IP displayed in the white box is the same as the IP address you selected above, then click the "Install Now".

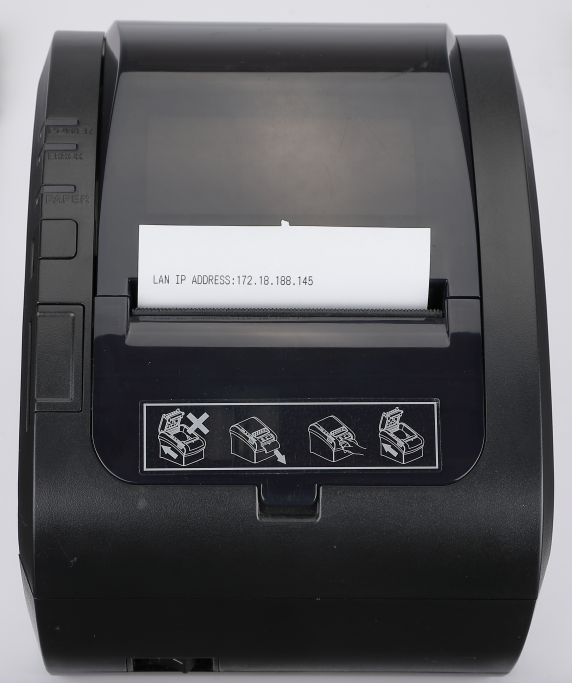

(4)Click "Install Now", the printer will automatically print out a LANport detection ticket.

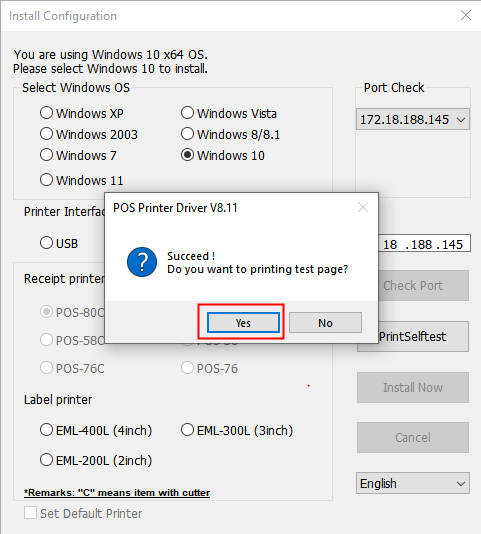

(5)The driver will automatically pop up a small window. Click "Yes", and the printer will print out a "POS Printer" test page, indicating that the printer is ready.

Note: After the installation, the computer will automatically open an FAQ document. If you encounter any problems during use, you can read the FAQ document first.

Demo video: https://munbyn.biz/3p8Ar2m

3.Install Multiple LAN Printers

Note: If you need to add other LAN printers, please use the method below to add them.

(1)Select "LAN" and wait about 10 seconds.

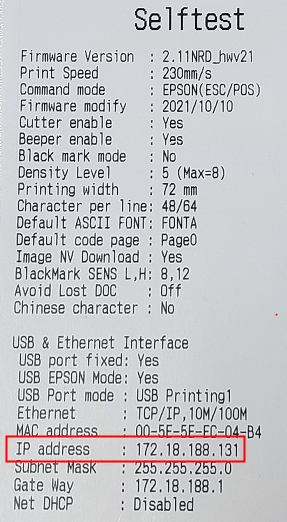

(2)Turn off the printer, press and hold the FEED button to turn on the printer, and release it when you hear a beep. The printer will automatically print a self-test page on which you can then check the IP address of the printer.

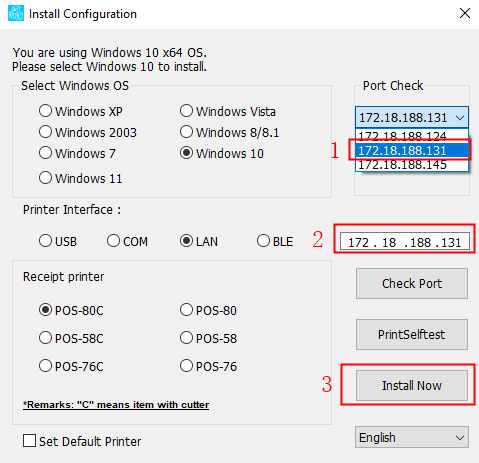

(3)Click the IP address the same as the test page displayed by the "Port Check", the IP displayed in the white box is the same as the IP address you selected above, then click the "Install Now".

Note: If you cannot find your printer's IP address, please check whether your network connection between the printer and your computer is correct. Close and reopen the program and restart the printer.

Demo video: https://munbyn.biz/3HeIOQ2
