ITPP905 How to Install a Windows Wi-Fi Printer?

Note: To use the ITPP905 in a Windows environment, you need to download this printer driver in advance.

• Get the Windows driver from the link:  munbyn.biz/905driverW
• If your system is updated, please uninstall the driver before installing it.

Demo vedio: https://munbyn.biz/905WiFisetupW

1、Before Installing the Wi-Fi Printer

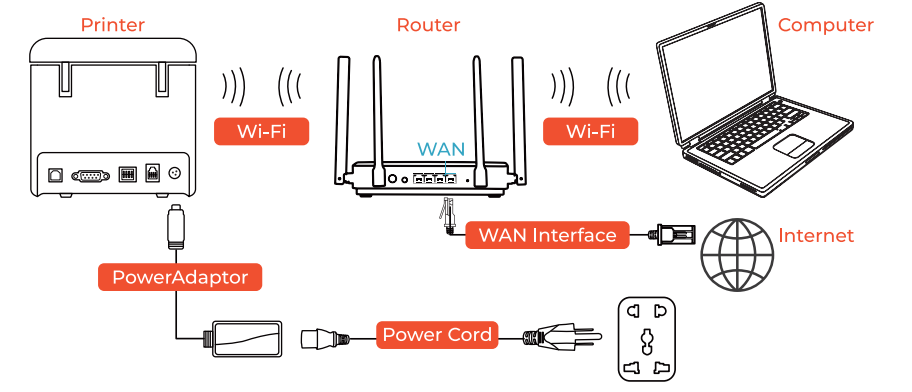

1) Connect the printer to the power supply and Windows computer, load the paper correctly and turn it on.

1) Open the Setting Tool on your Windows computer

Setting tool download:  munbyn.biz/905WTool

2) Printers connect to a computer via USB cable. Turn the printer on.

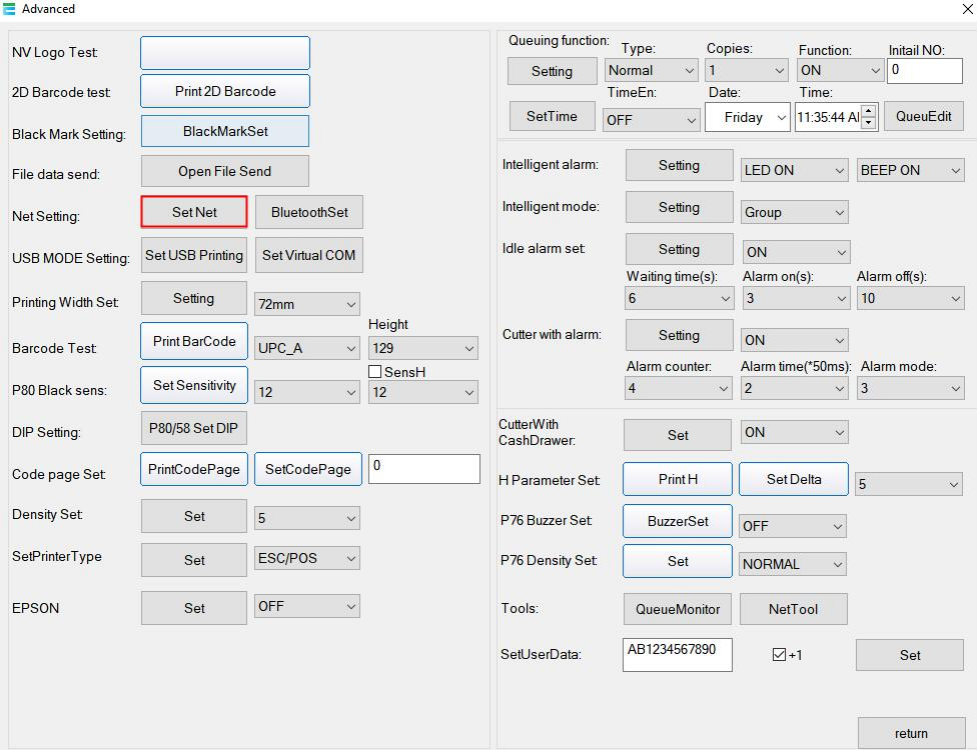

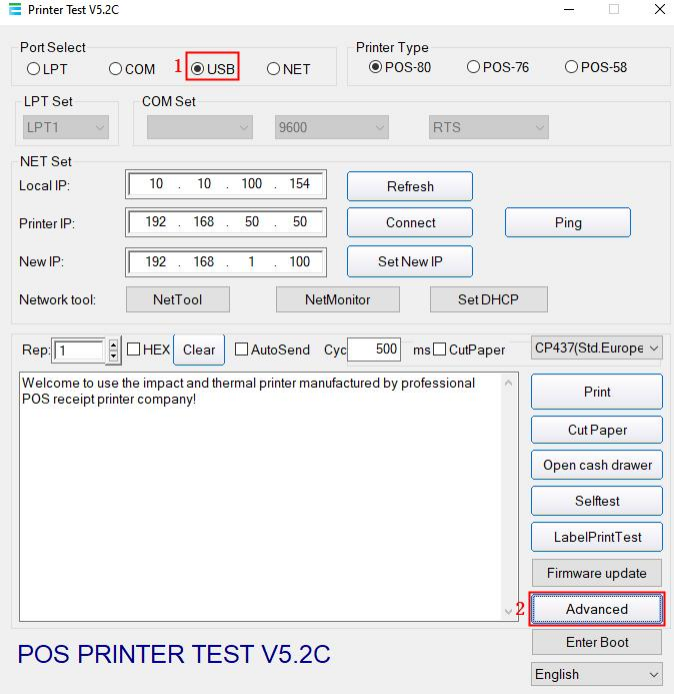

3) Open Setting Tools <Printer Test V5.2C.exe> and click [USB]-> [Advance]-> [Set Net].

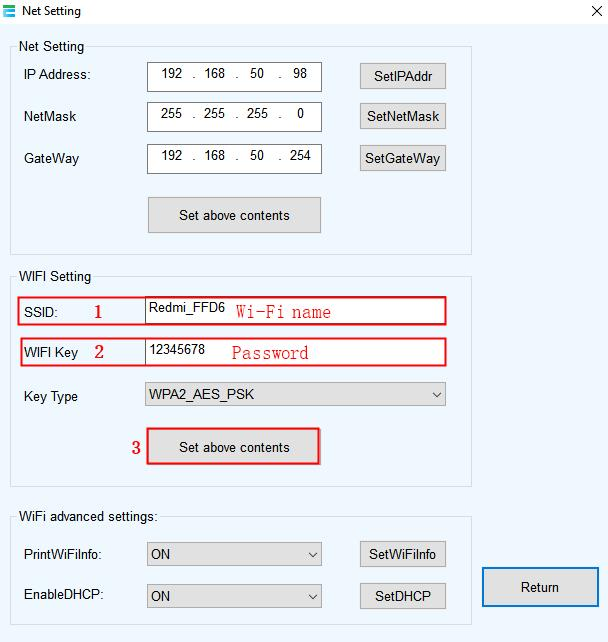

3) Input [Wi-Fi name] and [password], click [Set above contents]. The printer will make a beep and automatically print a Wi-Fi page which means the wireless network configuration of the printer is successful.

2、Install the printer driver

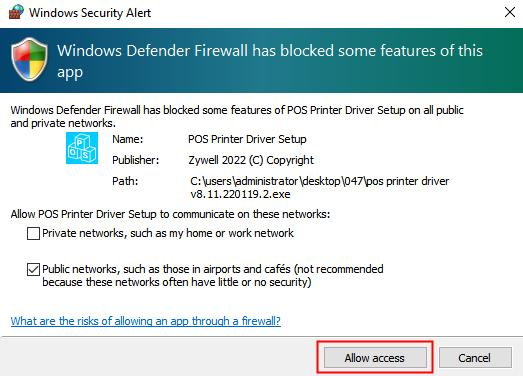

Note:  During installation, a Windows Security Alert may pop up, showing that Windows Defender Firewall has blocked some features of this app. Please click "Allow access". This driver has been fully tested on all current versions of Windows.

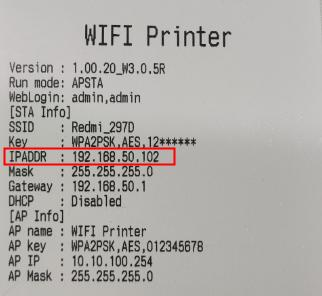

1) Print the Wi-Fi page and check the IP address on that page.

Note: Restart the printer can automatically print the Wi-Fi page.

2) Double click <POS Printer Driver V8.xx.exe>

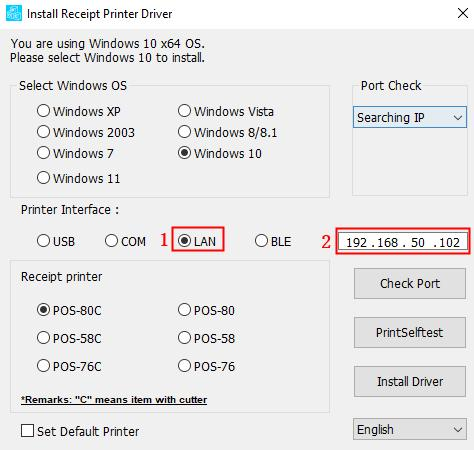

3) Select [LAN] and input the IP address displayed on the Wi-Fi printer page in step 1 in the white box.

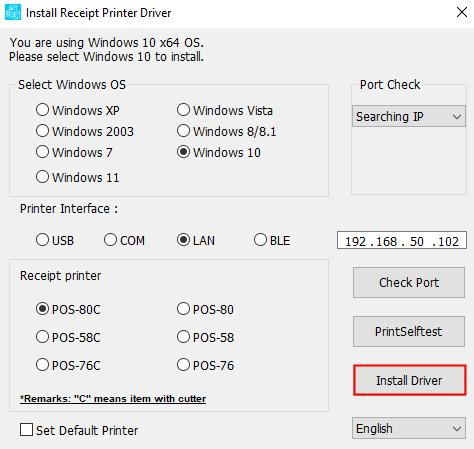

4) Click [Install Driver], the printer will automatically print out a LAN port detection ticket

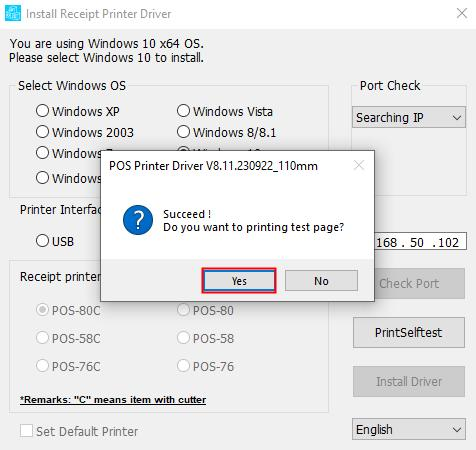

5) Click [Yes], the printer will print out a "POS Printer" test page, indicating that the printer is ready.
