The purpose of CIS calibration is to use white paper to completely cover the upper and lower CIS tubes, and then the machine's program will automatically complete the white balance.

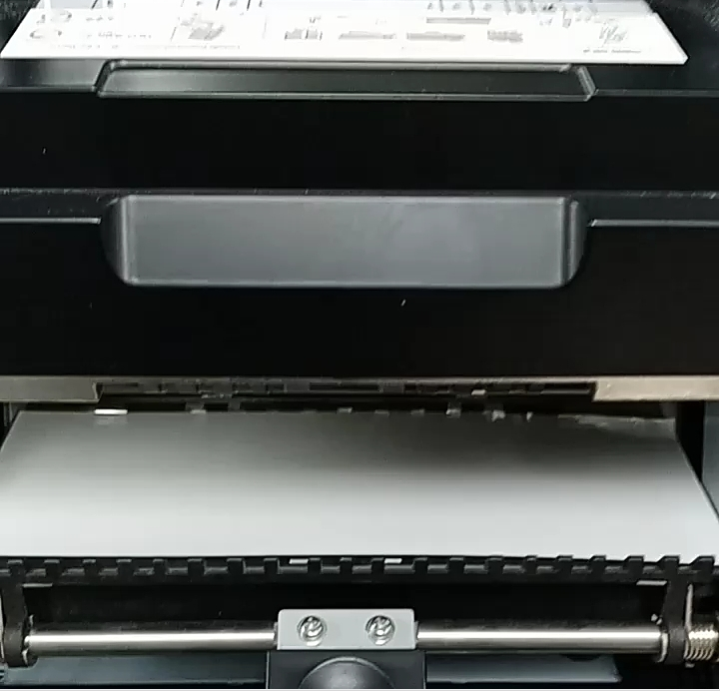

Figure1-1 Lower CIS tube position
If the IMC01 screen shows that the CIS calibration failed, please check whether the position of the white paper can cover the upper and lower CIS tubes.
The image and video shows the correct location.

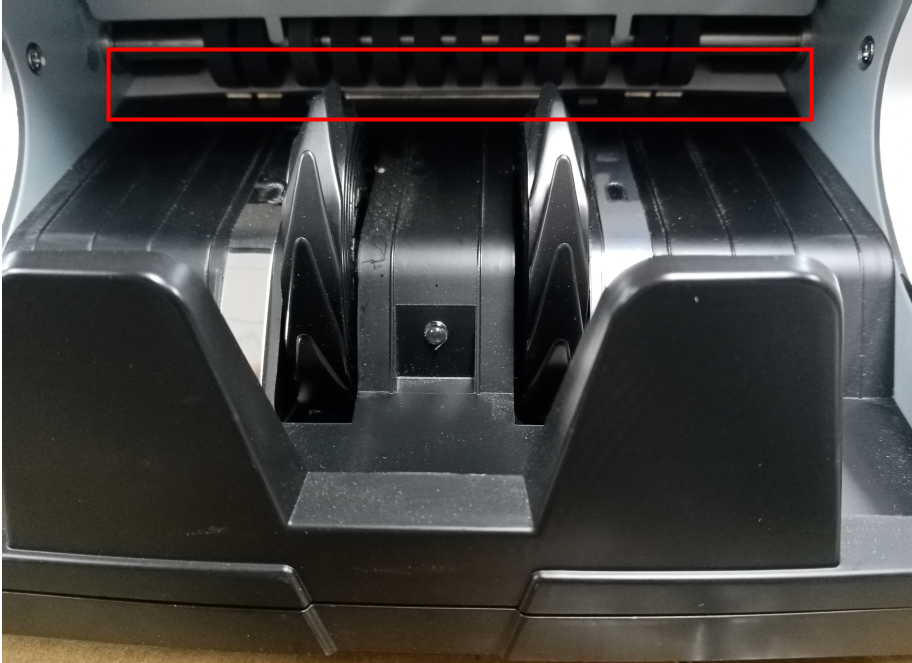

Figure1-2 The right place of white paper in the back
Figure1-3 The right place of white paper in the front
Demo video: http://u.pc.cd/9LditalK
If the white paper is placed correctly and the calibration fails after the second calibration, please contact us to repair or replace the machine.
Dear MUNBYN Customer, contact us for further assistance,
E-mail: support@munbyn.com
Whatsapp: +8618144898200
