Set Up The ITPP047 for First Use on Linux/Raspberry Pi

MUNBYN Leo
  • Updated

Note: To use the ITPP047 in a Linux/Raspberry Pi environment, you need to install this printer driver in advance.

1. Before Installing the Linux /Raspberry Pi Printer

The computer is connected to the wireless router. Please see the below picture.


2. Install the Linux/Raspberry Pi Printer

  1. Start the terminal.
  2. Make sure the printer is connected to your computer by the attached USB cable and power on.

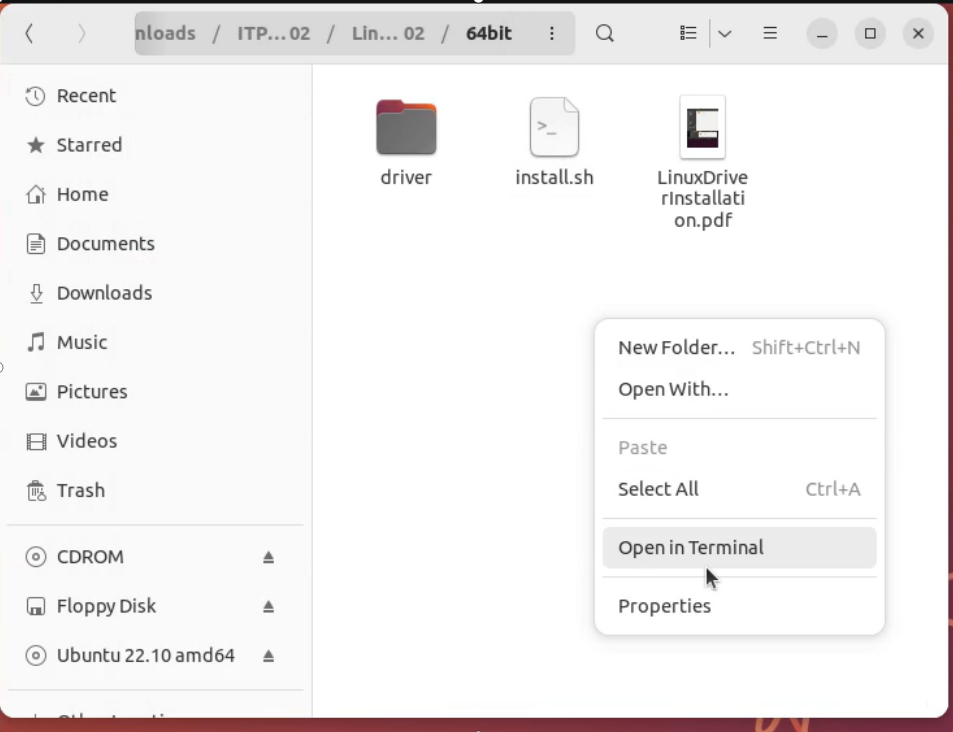

  3. Open the Linux folder.
  4. Expand the [LinuxDriver] file downloaded from the website of the Linux folder

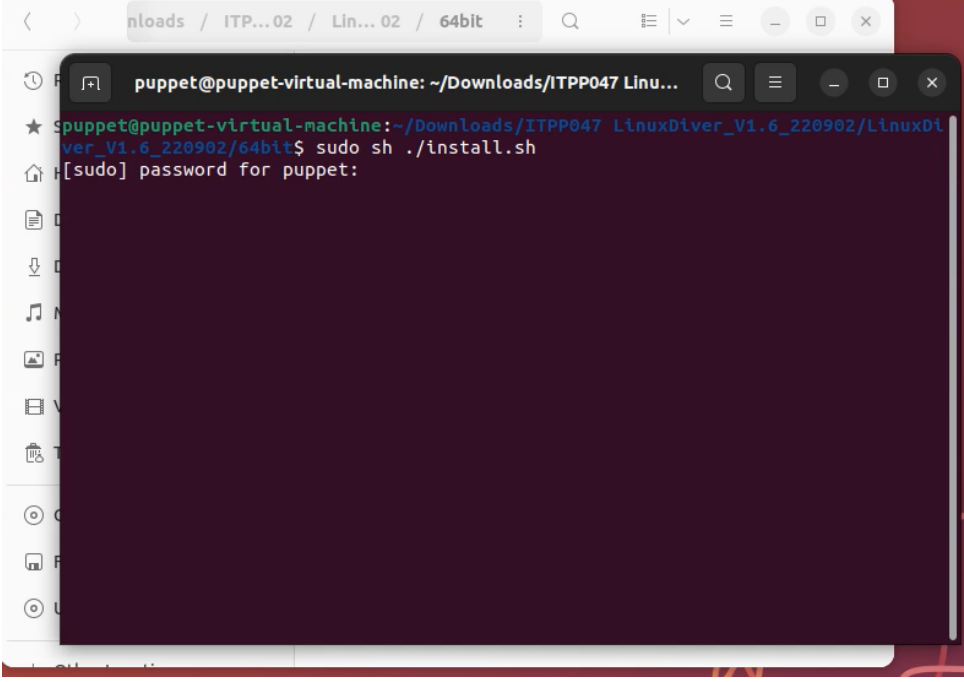

  5. Open the terminal and enter [sudo sh ./install.sh].（Use the “sudo” command to enable root account privileges).
  6. Enter your root password. (If you do not have a root password, please open the terminal and enter [sudo password root] to set the root password).








    3 Install Printer via USB Connection

    a)Connect the printer to your PC, and then power on the printer.

    b)Open your favorite web browser and navigate to http://localhost:631/admin

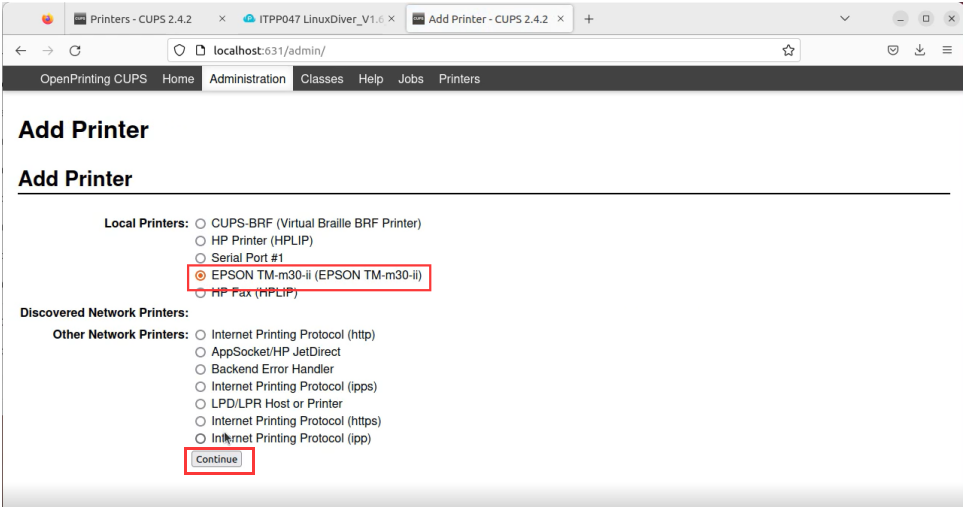

    • Clickthe [Add Printer].

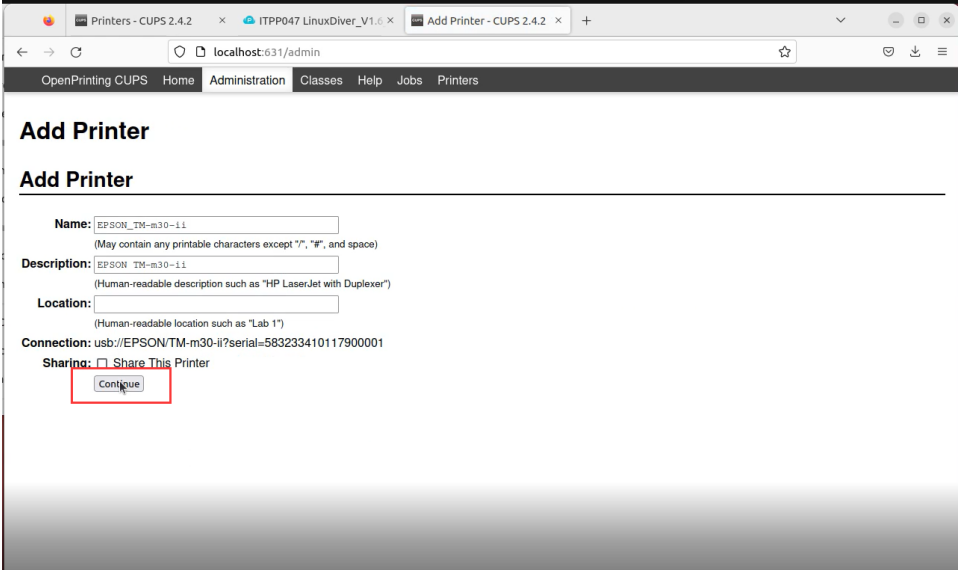

    • Choose [EPSON TM-m30]or unknown printer, and click the [Continue].











    • Choose [POS]and click the [Continue].

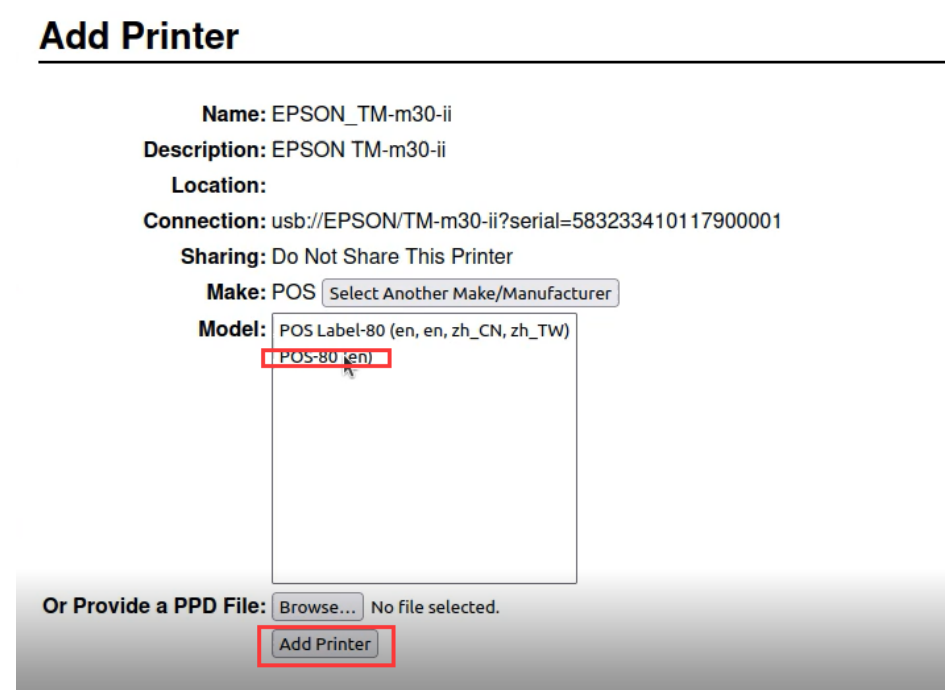

    • Choose [POS-80]and click the [Add Printer].

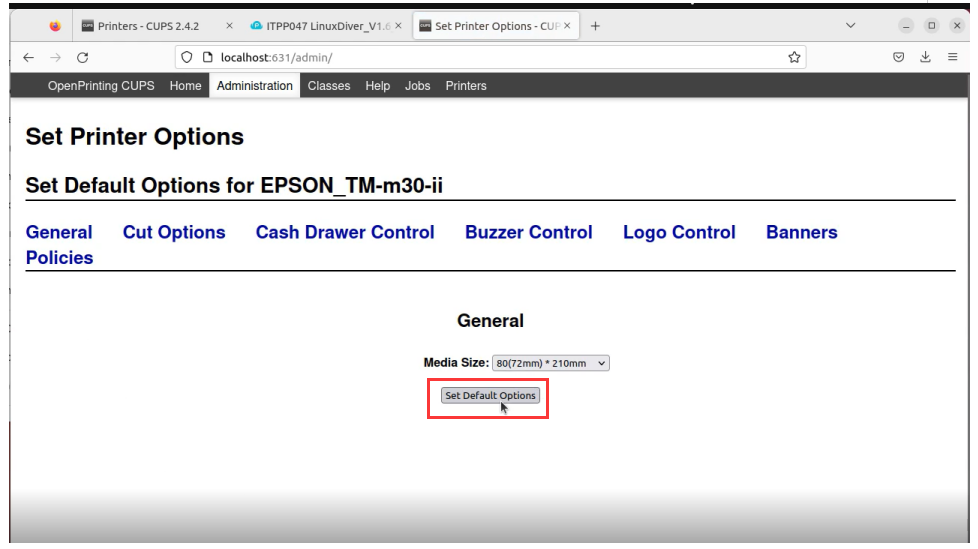

    • This completes printer installation and registration.




Demo video: http://u.pc.cd/RzjctalK
