Note: To use the ITPP047 in a Windows environment, you need to install this printer driver in advance.
- Get the Windows driver from the link: http://u.pc.cd/mcictalKor the provided USB Flash Drive.
- If your system is updated, please uninstall the driver before installing it.
1.Before Installing Bluetooth Printer
- Connect the printer to the power outlet through the power cord, put the thermal paper into the printer, and turn on the printer and the computer.
- Connect the printer Bluetooth to your computer.
(1):Click the Bluetooth icon and go to Settings.

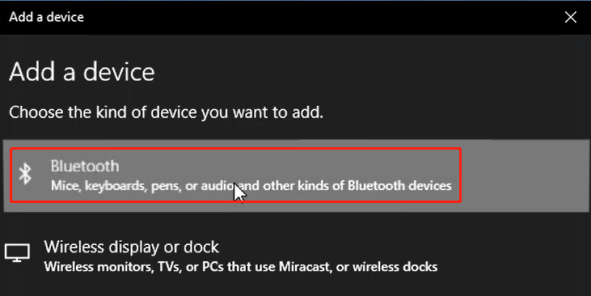

(2):Click "+"and choose Bluetooth.
(3):Choose "Printer001"and enter the PIN code "0000".
Note: If you have changed the Bluetooth name or password, you can print the self-test page to view the Bluetooth information. Refer to Section 2.2.3, step 2 for how to print the Bluetooth printer page.
(4):The Bluetooth connection is successfully.
2.Install a Bluetooth Printer
(1)Double click "POS Printer Driver V8.xx.exe".
(2)Select "BLE" and your printer's Bluetooth mac address will be displayed on the "Port Check".

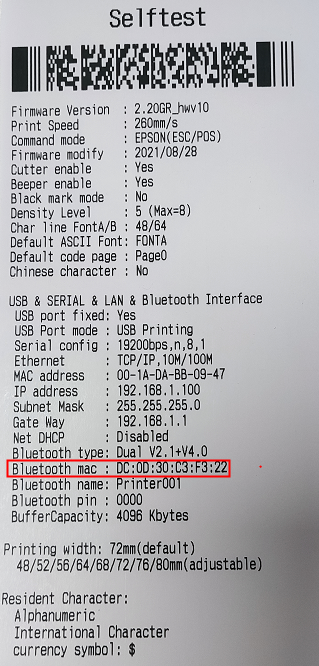

Note: You can print the self-test page and check the Bluetooth mac address of the printer.
(3)Click "Install Now", the printer will automatically print out a Bluetooth port detection ticket.

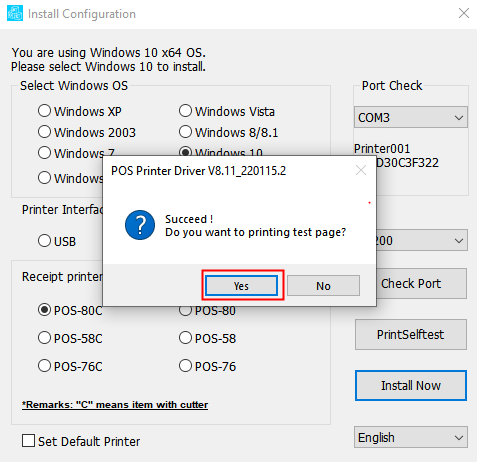

(4)The driver will automatically pop up a small window. Click "Yes", the printer will print out a "POS Printer" test page, indicating that the printer is ready.
Note: After the installation, the computer will automatically open an FQA document. If you encounter any problems during use, you can read the FAQ document first.
Demo video: http://u.pc.cd/5KUrtalK
