How to set up GS1 barcode?

1. Click Infowedge

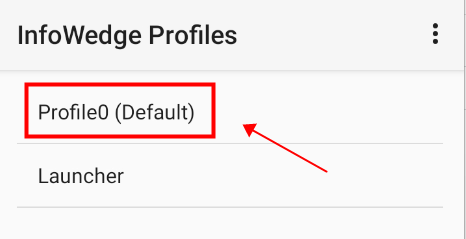

2. Click Profile0 (Default).

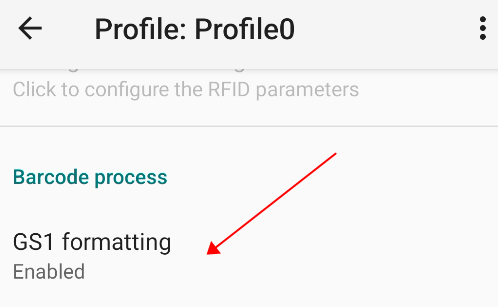

3. Then you can find the GS1 formatting

4. GS1 formatting: mainly for the processing of GS1 type barcodes, such as splitting barcodes, deleting GS characters, etc.

The following table shows examples of GS1 barcode format settings:

Original barcode data	0104900001802281172404271019179878 ☒ 301
Delete GS	0104900001802281172404271019179878301
Remove GS + separate decoding	(01)04900001802281(17)240427(10)19179878(30)1
Delete GS + single decoding + single line break	(01)04900001802281 (17)240427 (10)19179878 (30)1
Replace the GS character with [GS]	0104900001802281172404271019179878[GS]301
